90*Male Orfs X Mmetric Adj Elb 6069-08-18

Specifications

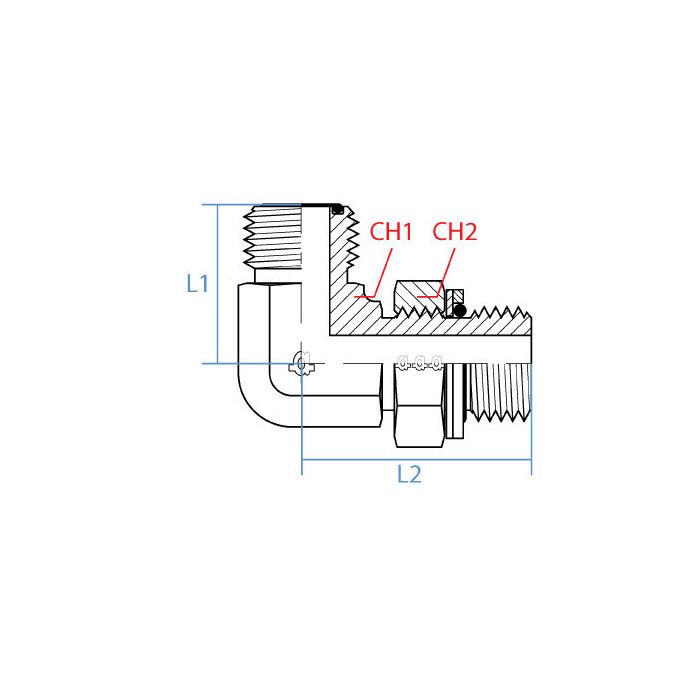

CH1 Width 19mm	CH2 Width 24mm	L1 Length 30mm	L2 Length 40mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 13/16 - 16 UN	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Orfs	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6069-08-18	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

What kind of steel is this made outta?

Question by: Diane D on Oct 8, 2025, 9:52 AM

This 90-degree elbow fitting is constructed from durable steel, ensuring a robust and reliable hydraulic connection.

Answer by: Customer Support on Oct 9, 2025, 4:35 PM

got a tight spot on a loader where the hose needs to make a 90 turn between an ORFS port and a metric fitting, this the kind of thing that'd work for that?

Question by: Lance Y on Jun 8, 2025, 11:04 AM

Yeah, that's exactly what this fitting is built for. One end is a 1/2" Male ORFS with a 13/16-16 UN thread, and the other is a Male Metric M18 x 1.5. The 90-degree elbow shape lets you redirect the line cleanly without having to force a hose into a bend it doesn't want to make. At 30mm on the short side and 40mm on the long, it's compact enough to fit into some pretty cramped areas without adding a lot of bulk to the connection.

Answer by: Customer Support on Jun 10, 2025, 7:10 AM

trying to swap an elbow out, is this one male ORFS on one end and metric male on the other?

Question by: Rick W on Jan 8, 2026, 5:30 PM

On the ORFS side you are getting a male 13/16 - 16 UN connection, which is the 1/2 inch ORFS size callout. The other end is a metric male M18 x 1.5, listed as 18 mm.

Answer by: Customer Support on Jan 10, 2026, 8:10 AM
