90*Male Orfs X Mmetric Adj Elb

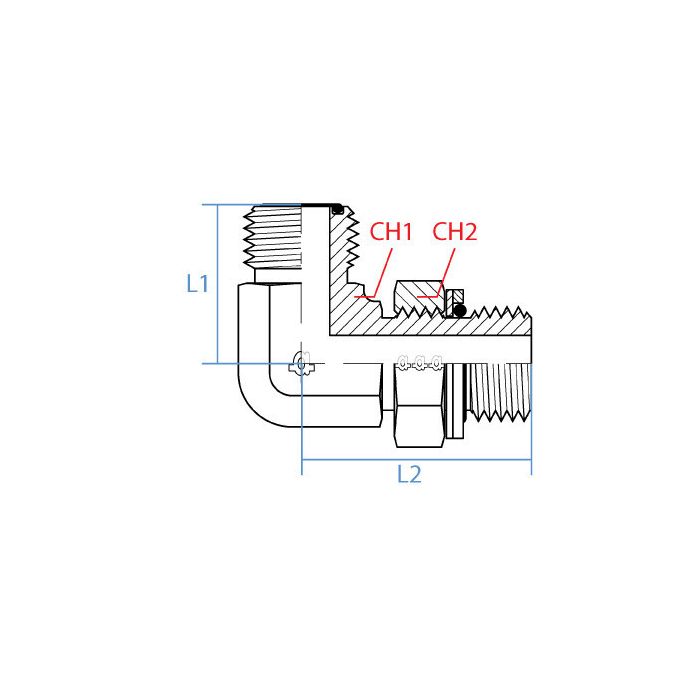

CH1 Width 19mm	CH2 Width 22mm	L1 Length 28mm	L2 Length 37mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 13/16 - 16 UN	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Orfs	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size 16mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6069-08-16	Product Weight 0.26 lbs

Product Questions & Answers 1

Product Questions & Answers

Will this fitting work with standard metric hydraulic lines?

Question by: Rhonda M on Jun 5, 2025, 7:44 AM

This elbow is designed to connect a 1/2" Male ORFS (O-Ring Face Seal) fitting to a Male Metric M16 x 1.5 thread. So, as long as your lines match those thread types, it should work fine.

Answer by: Customer Support on Jun 7, 2025, 6:54 AM
