90*Male Orfs X Mmetric Adj Elb

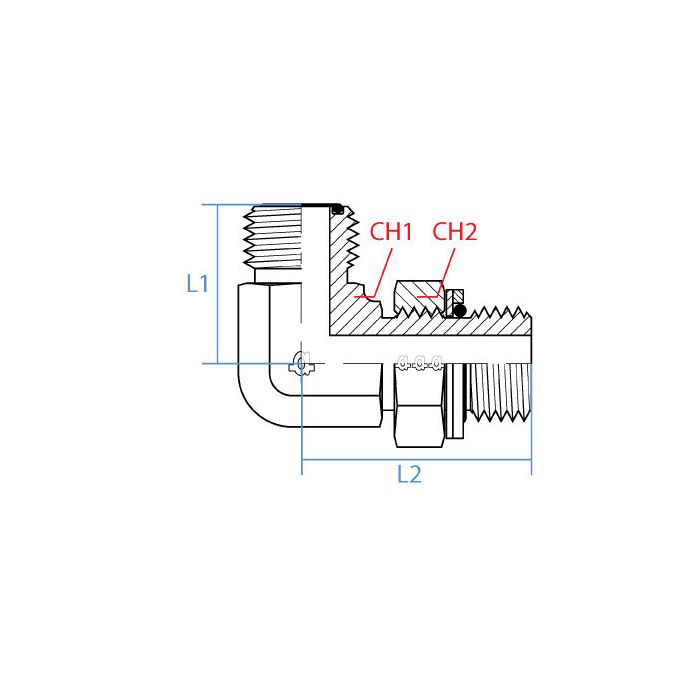

CH1 Width 19mm	CH2 Width 22mm	L1 Length 26mm	L2 Length 37mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 11/16 - 16 UN	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Orfs	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size 16mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6069-06-16	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

got a metric port on my hydraulic block and need to swing the line out at a 90, does this fitting have a male metric end that'll thread right into it?

Question by: Dale S on Oct 26, 2025, 4:33 PM

The metric side on this adapter is a 16mm male end with an M16 X 1.5 thread pitch. If your block has a female M16 X 1.5 port, this will thread straight in. The 90 degree elbow lets you redirect the line rather than running it straight out, which comes in handy when clearance is tight around the block.

Answer by: Customer Support on Oct 28, 2025, 11:28 AM

Will this fitting hold up okay outside? I need to use it on some equipment that's gonna be exposed to the weather.

Question by: Frank M on Jan 11, 2026, 8:16 PM

This Adaptall elbow is made of steel, so it should be suitable for outdoor use, but keep in mind that steel can be susceptible to rust over time, especially in wet environments.

Answer by: Customer Support on Jan 13, 2026, 6:18 AM
