90*Male Orfs X Mmetric Adj Elb 6069-06-14

Specifications

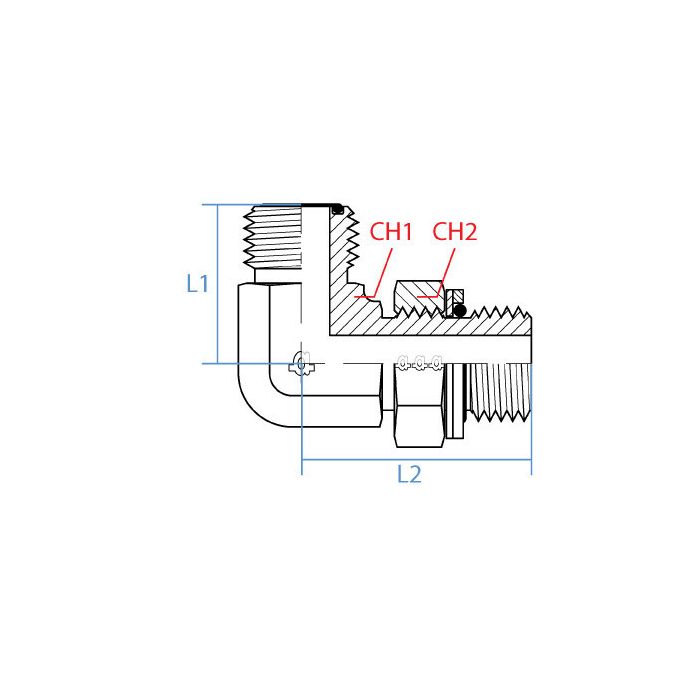

CH1 Width 19mm	CH2 Width 19mm	L1 Length 26.5mm	L2 Length 37mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 11/16 - 16 UN	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Orfs	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6069-06-14	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

I need an elbow fitting for a tight spot. What's the overall length of this thing?

Question by: Jimmy O on Nov 19, 2025, 9:39 PM

This elbow's dimensions are 26.5mm (L1) and 37mm (L2), making it relatively compact for installations where space is limited.

Answer by: Customer Support on Nov 21, 2025, 7:09 AM

trying to swap an elbow out, are the ends on this one 11/16-16 ORFS male on one side and M14 x 1.5 male metric on the other?

Question by: Sheila M on Jan 24, 2026, 4:07 PM

It is a 90 degree adjustable steel elbow with an 11/16 - 16 UN Male ORFS connection on one end and an M14 x 1.5 Male Metric connection on the other.

Answer by: Customer Support on Jan 26, 2026, 6:20 AM

got a line coming off a metric port on my cylinder that I need to tie into an ORFS fitting, this elbow gonna work for that kind of crossover setup?

Question by: Carl T on Oct 10, 2025, 12:08 PM

Yeah, that's exactly the kind of crossover situation this fitting handles. One end is an 11/16-16 UN Male ORFS and the other is M14 x 1.5 Male Metric, so you can bridge those two thread types without stacking extra adapters in the line. Both sides are 19mm across the wrench flats, and the 90-degree angle helps when you're working in a spot where a straight adapter just won't fit clean.

Answer by: Customer Support on Oct 12, 2025, 6:38 AM
