90*Male Orfs X Mmetric Adj Elb 6069-04-12

Specifications

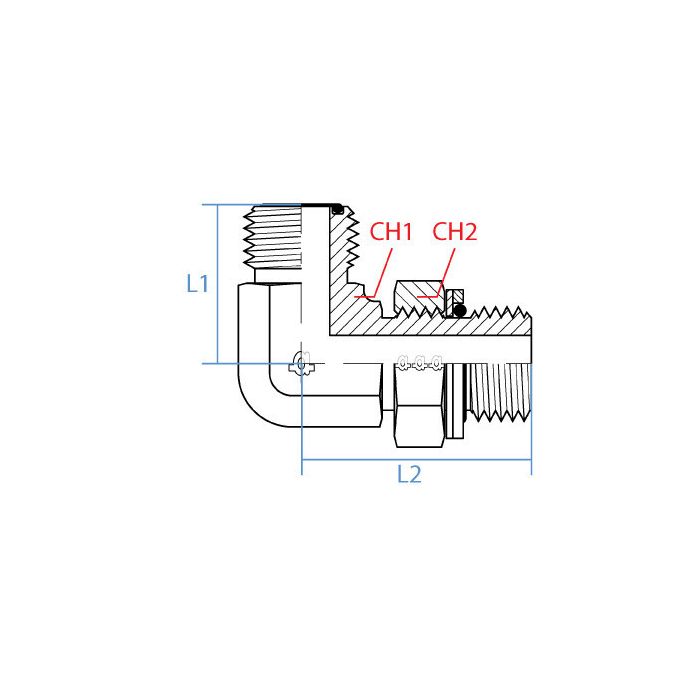

CH1 Width 14mm	CH2 Width 17mm	L1 Length 23mm	L2 Length 33mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Orfs	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size 12mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6069-04-12	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting hold up okay in a hydraulic system that sees pretty consistent use, or is it more for lighter duty stuff?

Question by: Tommy W on Nov 29, 2025, 5:12 PM

Constructed from robust steel, this 90° elbow fitting is designed for demanding hydraulic applications where reliability and precision are paramount.

Answer by: Customer Support on Dec 1, 2025, 10:27 AM

got a hose end that’s 9/16-18 ORFS on one side and i need to swing over to a metric male, is this the right elbow?

Question by: Howard J on Aug 29, 2025, 10:55 AM

For that combo, it matches up. Side 1 is a male ORFS with a 9/16-18 UNF thread and it is called out as 1/4 inch size. Side 2 is a metric male M12 x 1.5, listed as 12 mm.

Answer by: Customer Support on Aug 30, 2025, 9:05 PM

trying to figure out if this'll work for my setup, got a 9/16-18 UNF ORFS port on one end and need to tie into a metric M12 x 1.5 line. this the right fitting for that?

Question by: Keith S on Feb 12, 2026, 8:17 AM

Yeah, that's exactly what this fitting does. One side is male ORFS with a 9/16-18 UNF thread, and the other side is a male metric connection with an M12 x 1.5 thread. The 90 degree elbow shape lets you change direction between those two connections, so if your hydraulic connections runs those two thread types at a right angle to each other, this fitting bridges them cleanly.

Answer by: Customer Support on Feb 14, 2026, 6:57 AM
