90*Male Orfs X Mmetric Adj Elb 6069-04-10

Specifications

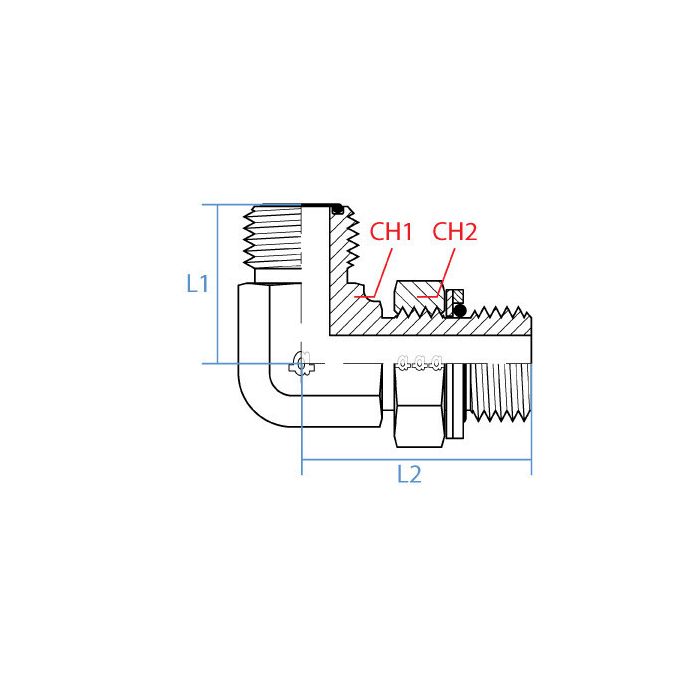

CH1 Width 14mm	CH2 Width 14mm	L1 Length 22mm	L2 Length 32.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Orfs	Side 2 Callout M10 X 1.0	Side 2 Gender M	Side 2 Size 10mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6069-04-10	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

got a metric M10 x 1.0 port on a small hydraulic block and need to run an ORFS line off it at a right angle, this the fitting that bridges those two?

Question by: Travis P on Jul 26, 2025, 10:23 AM

Yeah, that's exactly what this one does. One end is a 9/16-18 UNF Male ORFS, the other is a Male M10 x 1.0 Metric thread, and the whole thing sits at a 90-degree angle between them. It's steel construction, so it holds up in standard hydraulic circuit conditions. The adjustable elbow feature lets you rotate the angle during installation before locking it down, which makes routing in tight quarters a lot easier.

Answer by: Customer Support on Jul 27, 2025, 9:15 PM

trying to hook a 1/4" ORFS hose up to a metric port, is this the right elbow for that?

Question by: Tammy S on Apr 9, 2025, 8:04 AM

For joining those two standards at a right angle, it matches a 1/4 inch Male ORFS end with 9/16-18 UNF threads on one side and a Male Metric M10 x 1.0 end on the other.

Answer by: Customer Support on Apr 11, 2025, 6:16 AM

So, this thing's got metric on one side and ORFS on the other? Just want to make sure I'm readin' it right.

Question by: Rod R on Mar 8, 2026, 6:50 PM

That's correct. This adapter features a 1/4" Male ORFS fitting (9/16-18 UNF thread) on one end and a Male Metric M10 x 1.0 fitting on the other.

Answer by: Customer Support on Mar 10, 2026, 12:59 PM
