Male Orfs X Male Metric Sealed 6068-16-33

Specifications

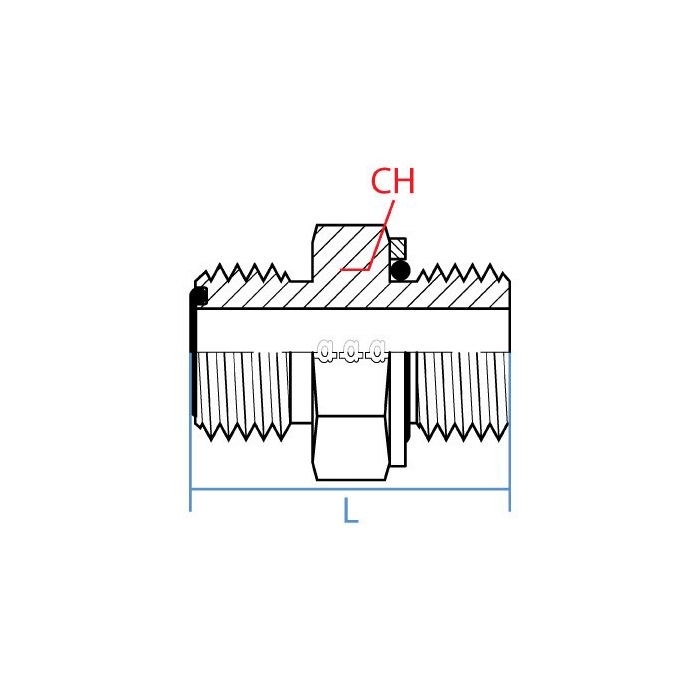

CH Width 41mm	L Length 47.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Orfs	Side 2 Callout M33 X 2.0	Side 2 Gender M	Side 2 Size 33mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6068-16-33	Product Weight 0.50 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting work to connect a 1 inch ORFS to a 33mm metric connection?

Question by: Ray B on Jul 9, 2025, 9:07 PM

Yes, this straight steel fitting adapts a 1" ORFS male connection (1-7/16 - 12 UN callout) to a 33mm metric male connection (M33 X 2.0 callout).

Answer by: Customer Support on Jul 11, 2025, 10:45 AM

Got a metric port on a hydraulic block that's calling for M33 X 2.0 and need to tie it into a 1" ORFS line. This fitting gonna work for that?

Question by: Dean A on Apr 4, 2026, 4:53 PM

Straight shot, yes. One end is a 1" ORFS male with a 1-7/16-12 UN thread, the other is a 33mm metric male with M33 X 2.0 threading. If both those specs match what you're working with, this adapter bridges that connection without any intermediate fittings. Steel construction, 47.6mm overall length, and a 41mm wrench flat if you need to get a tool on it during installation.

Answer by: Customer Support on Apr 6, 2026, 6:21 AM

Trying to match up a straight adapter, is this the one that goes from 1 inch ORFS male over to a 33mm metric male?

Question by: Daryl M on Jul 28, 2025, 9:52 AM

You are looking at a straight steel adapter with a 1 inch ORFS male on one end with a 1-7/16 - 12 UN callout, and a 33mm metric male on the other end with an M33 x 2.0 callout.

Answer by: Customer Support on Jul 29, 2025, 10:48 AM
