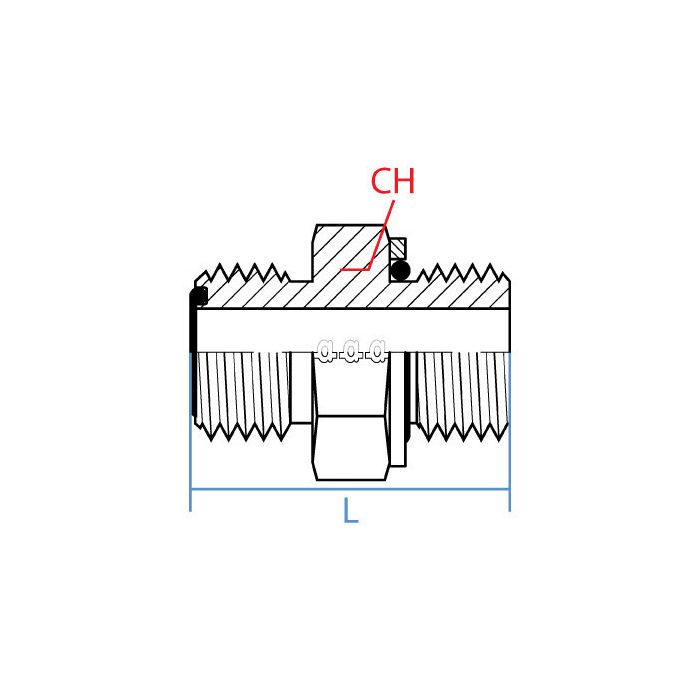

Male Orfs X Male Metric Sealed

CH Width 30mm	L Length 40.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1 - 14 UNS	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Orfs	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6068-10-22	Product Weight 0.24 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a piece of equipment that's got both metric and inch-series fittings mixed together, will this adapter actually bridge those two without needing anything extra on the metric end to seal it up?

Question by: Bobby B on Oct 24, 2025, 10:44 AM

The metric side on this one is a sealed design, so no separate sealing washer is needed. The M22 x 1.5 thread handles the seal on its own, and the other end connects to a 5/8" Male ORFS fitting running 1-14 UNS thread. It's a straight adapter, steel construction, so you're getting a direct male-to-male connection between those two thread standards in one compact piece.

Answer by: Customer Support on Oct 25, 2025, 9:04 PM
