Male Orfs X Male Metric Sealed

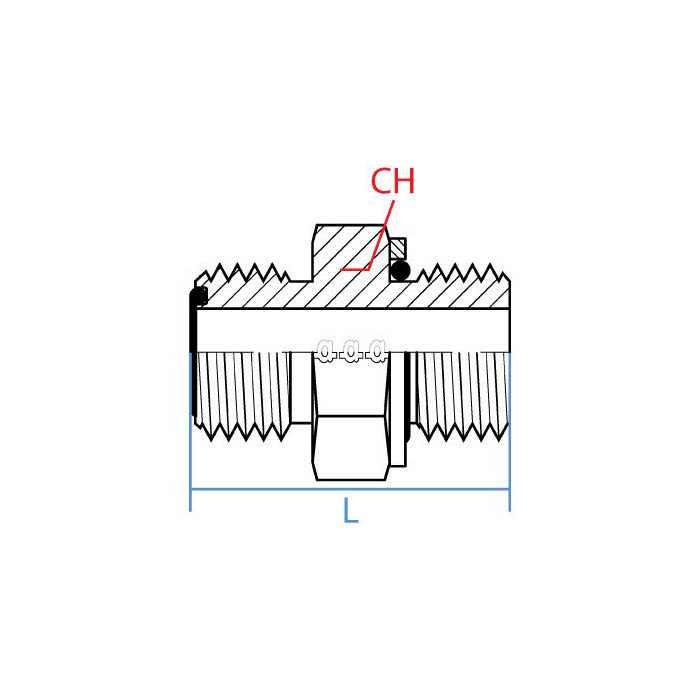

CH Width 24mm	L Length 36.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 13/16 - 16 UN	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Orfs	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6068-08-18	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

got a metric port on my pump that's M18 x 1.5 and need to tie into an ORFS line, this the right adapter for that?

Question by: Tommy D on Sep 19, 2025, 8:16 PM

That's what this one's built for. One end is 13/16-16 UN male ORFS, which covers a 1/2" ORFS connection, and the other end is M18 x 1.5 male metric. Steel construction, straight configuration, so it'll drop right in between those two fittings without any fuss.

Answer by: Customer Support on Sep 21, 2025, 6:13 AM
