Male Orfs X Male Metric Sealed

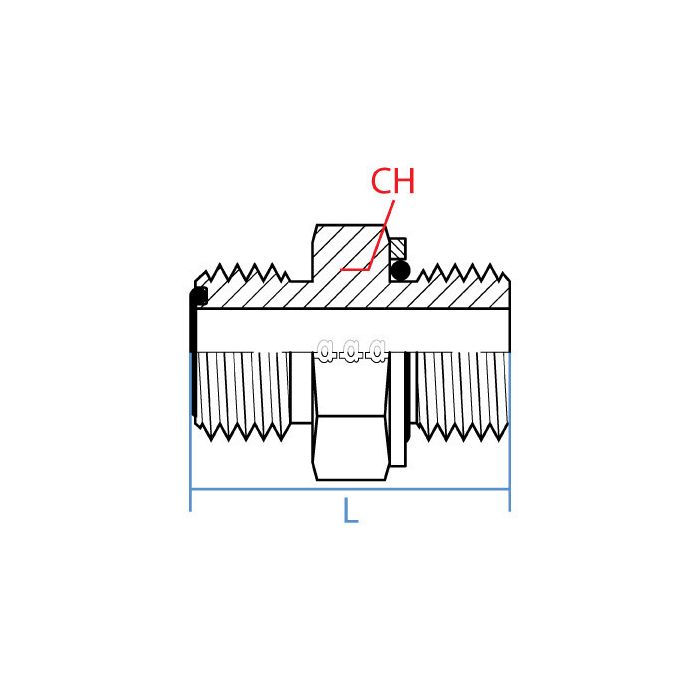

CH Width 19mm	L Length 32.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 11/16 - 16 UN	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Orfs	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6068-06-14	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

Does the metric side on this fitting use a 1.5 pitch thread, or is that something I'd need to double-check before ordering?

Question by: Judy J on Jul 15, 2025, 4:11 PM

M14 X 1.5 is the thread spec on the metric male side, so 1.5mm pitch is confirmed. The ORFS side runs 11/16-16 UN, which is standard for 3/8" ORFS male connections. Both thread callouts are fixed on this fitting, no variations.

Answer by: Customer Support on Jul 17, 2025, 3:28 PM
