Male Orfs X Male Metric Sealed 6068-06-12

Specifications

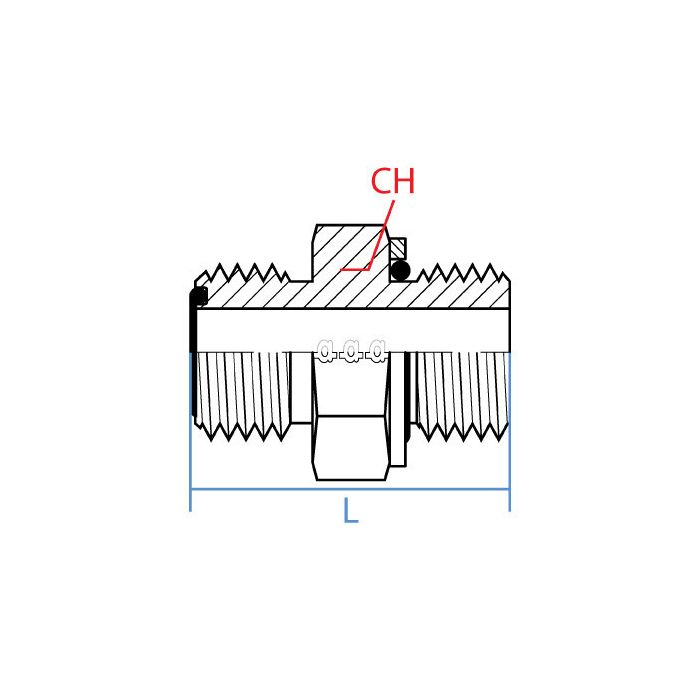

CH Width 19mm	L Length 32.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 11/16 - 16 UN	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Orfs	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size 12mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6068-06-12	Product Weight 0.12 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting work with standard metric hydraulic lines, or is it a special type?

Question by: Frank A on Jan 9, 2026, 9:30 PM

This fitting is designed with a M12 X 1.5 male metric thread on one side, making it compatible with standard metric hydraulic lines that match this specification. The other side features an 11/16 - 16 UN male Orfs thread.

Answer by: Customer Support on Jan 11, 2026, 7:33 AM

trying to swap a line over, is this fitting the one that goes from 11/16-16 ORFS to M12 x 1.5 metric?

Question by: Travis H on Mar 29, 2026, 9:25 PM

Yes, it is a straight steel adapter with a male 11/16 - 16 UN ORFS end on one side and a male M12 x 1.5 metric end on the other, so it is meant for that exact ORFS-to-metric connection.

Answer by: Customer Support on Mar 31, 2026, 7:32 PM

Got a metric port on a pump I'm trying to tie into an Orfs line, this the kind of fitting that'd bridge that gap?

Question by: Scott F on Jul 24, 2025, 5:43 PM

That's what this one's built for. One end is an 11/16-16 UN male Orfs thread, the other is M12 x 1.5 male metric, so it connects those two thread types in a straight shot. Both ends are male, so you'd need female ports or fittings on both sides of wherever it's going in. Steel construction, 32.2mm long, 19mm across the wrench flats. Adaptall makes these to pretty tight tolerances, so the fit tends to be clean when the ports are in good shape.

Answer by: Customer Support on Jul 26, 2025, 5:24 PM
