Male Orfs X Male Metric Sealed 6068-04-10

Specifications

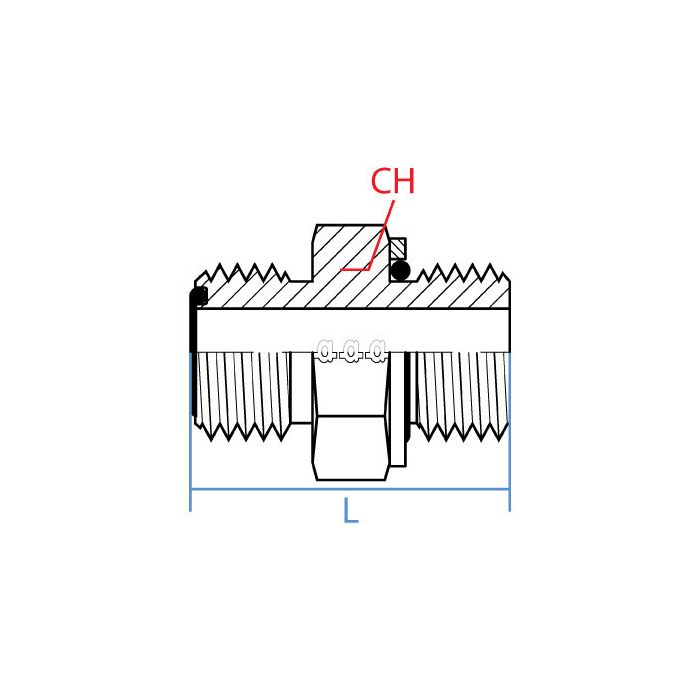

CH Width 16mm	L Length 26mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Orfs	Side 2 Callout M10 X 1.0	Side 2 Gender M	Side 2 Size 10mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6068-04-10	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

What kinda pressure can this thing handle? I'm hookin' it up to a pretty strong hydraulic system.

Question by: Lyle H on Apr 1, 2026, 6:55 PM

This adapter is designed for connecting ORFS and metric hydraulic systems. It's made from steel, so it should hold up in demanding industrial environments.

Answer by: Customer Support on Apr 3, 2026, 8:57 AM

Got a metric port on a piece of equipment that's M10 X 1.0 and need to tie it into an ORFS line runnin 9/16-18 UNF. This the right adapter for that?

Question by: Ray S on Mar 10, 2026, 6:24 PM

That's what this one's built for. One end is a 9/16-18 UNF male ORFS at 1/4" size, and the other end is a male metric M10 X 1.0 at 10mm. Steel construction, straight configuration. If your ports match those specs, you're good to go.

Answer by: Customer Support on Mar 12, 2026, 11:03 AM

Trying to match up an ORFS hose end to a metric port, is this the straight adapter that goes from 9/16-18 UNF ORFS male over to M10 x 1.0 male?

Question by: Tony H on Oct 27, 2025, 12:36 PM

For bridging those two standards, it’s a straight steel adapter with a male ORFS on Side 1 (9/16-18 UNF, 1/4 inch size) and a male metric sealed end on Side 2 (M10 x 1.0, 10 mm).

Answer by: Customer Support on Oct 29, 2025, 6:52 AM
