90*Male Orfs X Mbspp Adj Elbow 6059-20-20

Specifications

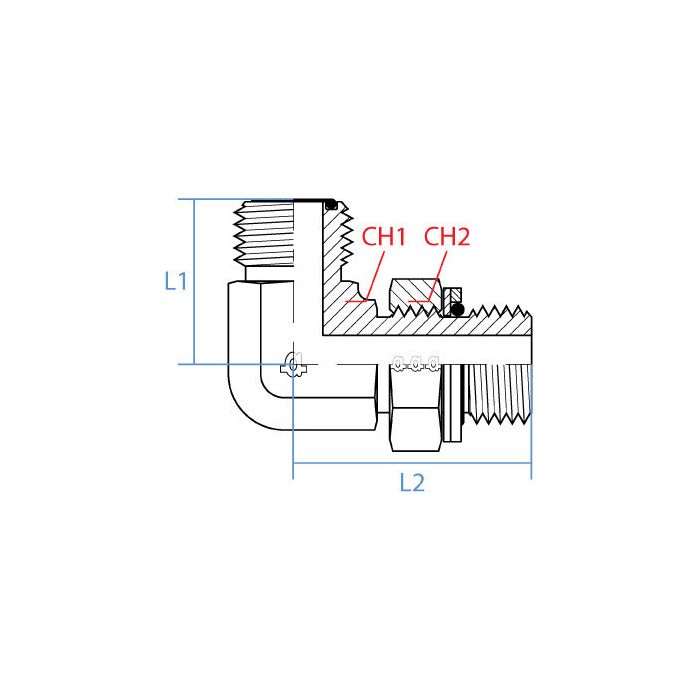

CH1 Width 41mm	CH2 Width 50mm	L1 Length 59mm	L2 Length 43.9mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-11/16 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Orfs	Side 2 Callout G 1-1/4 - 11	Side 2 Gender M	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6059-20-20	Product Weight 1.65 lbs

Product Questions & Answers 3

Product Questions & Answers

What's the width on each side of this elbow fitting? Gotta make sure it'll fit in the space I've got.

Question by: Norm B on Sep 2, 2025, 4:01 PM

Ch1 width is 41mm and Ch2 width is 50mm.

Answer by: Customer Support on Sep 4, 2025, 6:16 AM

trying to swap an elbow on a hose line, is this one 1-1/4 ORFS on one end and 1-1/4 BSPP on the other?

Question by: Dean T on Nov 23, 2025, 8:27 AM

On the ORFS side, it is a 1-1/4 inch male with a 1-11/16 - 12 UN thread callout. The other end is a 1-1/4 inch male BSPP with a G 1-1/4 - 11 callout.

Answer by: Customer Support on Nov 25, 2025, 6:01 AM

Got a machine running BSPP fittings on one end and ORFS on the other, this elbow gonna bridge that gap at 1-1/4 inch on both sides?

Question by: Cheryl F on Jul 12, 2025, 6:36 PM

Both ports on this fitting are 1-1/4 inch, so yes, it connects a 1-1/4 male ORFS (1-11/16 - 12 UN thread) on one side to a 1-1/4 male BSPP (G 1-1/4 - 11 thread) on the other. The 90 degree angle also means you can redirect the line without needing a separate elbow and adapter stacked together. Steel construction throughout.

Answer by: Customer Support on Jul 14, 2025, 6:19 AM
