90*Male Orfs X Mbspp Adj Elbow

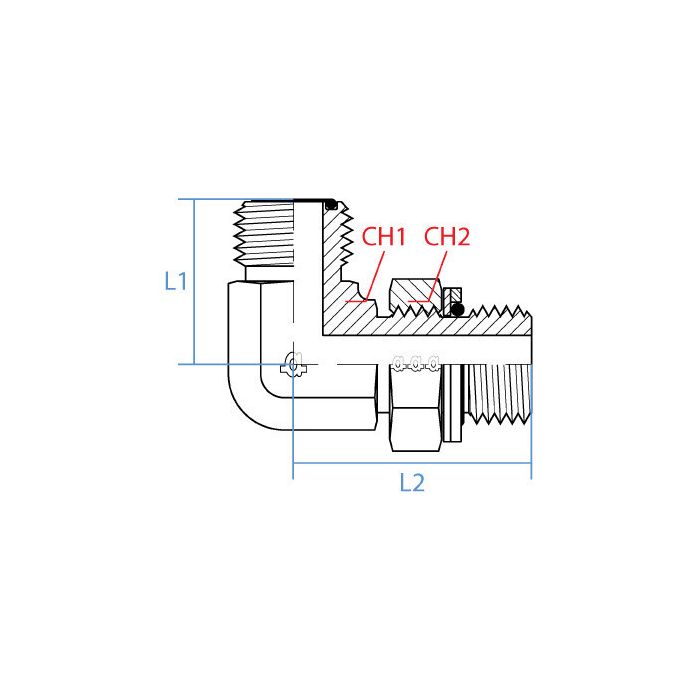

CH1 Width 41mm	CH2 Width 50mm	L1 Length 60mm	L2 Length 44.3mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-7/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Orfs	Side 2 Callout G 1-1/4 - 11	Side 2 Gender M	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6059-16-20	Product Weight 1.65 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 1-7/16-12 UN ORFS male. will this elbow mate up on that side?

Question by: Scott S on Mar 22, 2026, 3:44 PM

On the ORFS side, the elbow has a 1-7/16 - 12 UN male ORFS connection (listed as 1 inch size), so it matches that thread callout and connection type.

Answer by: Customer Support on Mar 24, 2026, 7:02 AM

Will this fitting hold up okay in a hydraulic system running around 2500 PSI?

Question by: Harvey R on Mar 16, 2026, 11:10 AM

Designed for industrial applications, this steel elbow fitting should provide reliable performance under demanding conditions, so 2500 PSI should be within its safe operating range.

Answer by: Customer Support on Mar 17, 2026, 12:39 PM
