90*Male Orfs X Mbspp Adj Elbow

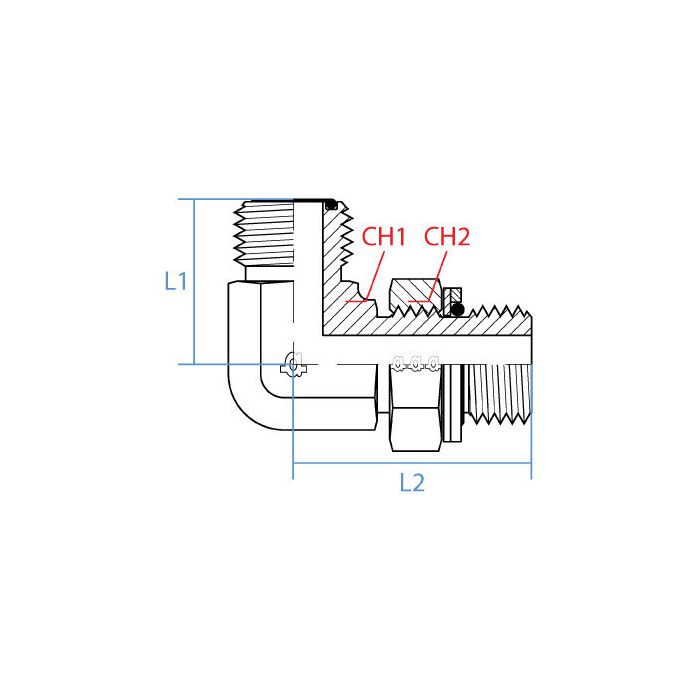

CH1 Width 36mm	CH2 Width 40mm	L1 Length 44mm	L2 Length 60mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-7/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Orfs	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number C1HQ63	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6059-16-16	Product Weight 1.20 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap out an elbow on my hydraulic line, is this one the kind that goes from a 1 inch male ORFS to a 1 inch male BSPP?

Question by: Phil B on Nov 10, 2025, 9:48 AM

You are looking at a 90 degree adjustable elbow with a 1 inch Male ORFS on one end and a 1 inch Male BSPP on the other. The ORFS side is 1-7/16 - 12 UN thread, and the BSPP side is G 1 - 11.

Answer by: Customer Support on Nov 12, 2025, 6:04 AM

Got a hydraulic line running ORFS on one end and BSPP on the other, does this fitting actually bridge both them thread types in a single elbow?

Question by: Stan S on Jul 29, 2025, 9:04 PM

That's what it does. One side is Male ORFS with a 1-7/16 - 12 UN thread, and the other is Male BSPP running a G 1 - 11 thread. Both sides are 1 inch in size, so you're getting a direct cross-standard connection without needing extra adapters in between. The 90 degree angle also helps when you're working in a spot where a straight fitting just won't clear.

Answer by: Customer Support on Jul 31, 2025, 6:28 AM
