90*Male Orfs X Mbspp Adj Elbow

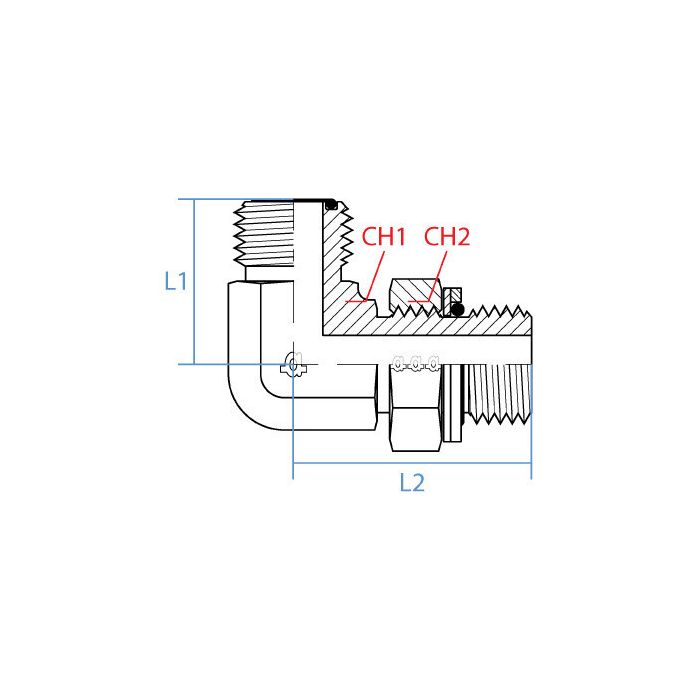

CH1 Width 36.5mm	CH2 Width 35mm	L1 Length 41mm	L2 Length 58mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-7/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Orfs	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6059-16-12	Product Weight 1.20 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a machine running ORFS ports on the hydraulic block, but the line coming off it has BSPP threads, does this fitting actually bridge those two standards, or am I looking at the wrong part?

Question by: Shawn A on Feb 3, 2026, 6:02 AM

That's exactly what this elbow is built for. One side is 1" Male ORFS with a 1-7/16–12 UN thread, and the other side is 3/4" Male BSPP running G 3/4–14. Both sides are male, so you'd be threading into female ports on each end. If your block has a 1" female ORFS port and your line terminates in a 3/4" female BSPP port, this fitting connects them with a 90 degree turn built right in.

Answer by: Customer Support on Feb 4, 2026, 2:41 PM
