90*Male Orfs X Mbspp Adj Elbow

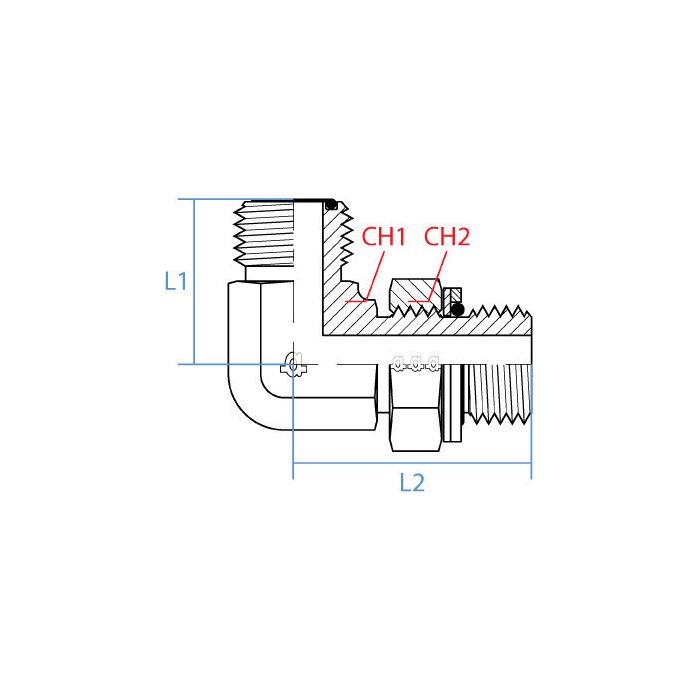

CH1 Width 36mm	CH2 Width 41mm	L1 Length 42mm	L2 Length 60mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-13/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Orfs	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6059-12-16	Product Weight 1.20 lbs

Product Questions & Answers 1

Product Questions & Answers

got a piece of equipment running a 3/4" ORFS port and I need to tie into a 1" BSPP line at a right angle, this fitting do that?

Question by: Billy R on Oct 3, 2025, 7:36 PM

That's what this one's built for. One end is a 3/4" Male ORFS with a 1-13/16 - 12 UN thread, and the other end is a 1" Male BSPP on a G 1 - 11 thread. The 90-degree elbow lets you make that turn without needing a separate adapter or an additional elbow in the line. Both sides are male, so make sure your ports are female on each end before ordering.

Answer by: Customer Support on Oct 4, 2025, 8:09 PM
