90*Male Orfs X Mbspp Adj Elbow

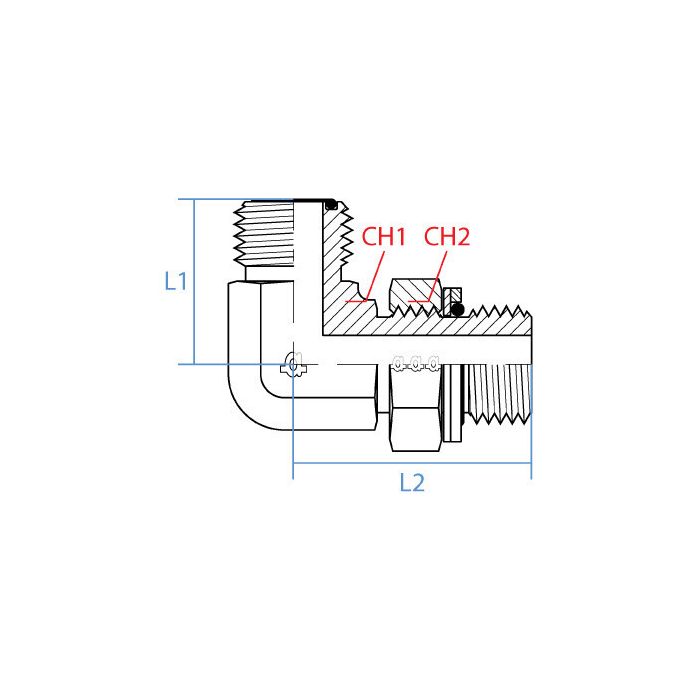

CH1 Width 30mm	CH2 Width 36mm	L1 Length 39mm	L2 Length 52mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-13/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Orfs	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6059-12-12	Product Weight 0.80 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up okay if I'm using it with some hydraulic equipment outdoors?

Question by: Neil T on Apr 4, 2026, 10:51 AM

This Adaptall fitting is made of steel, providing a robust connection for hydraulic systems.

Answer by: Customer Support on Apr 6, 2026, 6:32 AM

Got a piece of equipment running BSPP ports and need to tie into an ORFS line at a right angle, this fitting do that job?

Question by: Howard F on Sep 23, 2025, 9:38 AM

That's what it's built for. One end is 3/4" male ORFS with a 1-13/16-12 UN thread, and the other is 3/4" male BSPP with a G 3/4-14 thread. The 90-degree elbow shape handles the direction change, so if you've got those two port types meeting at a corner, this fitting bridges them without needing extra adapters in between.

Answer by: Customer Support on Sep 25, 2025, 6:45 AM
