90*Male Orfs X Mbspp Adj Elbow 6059-12-08

Specifications

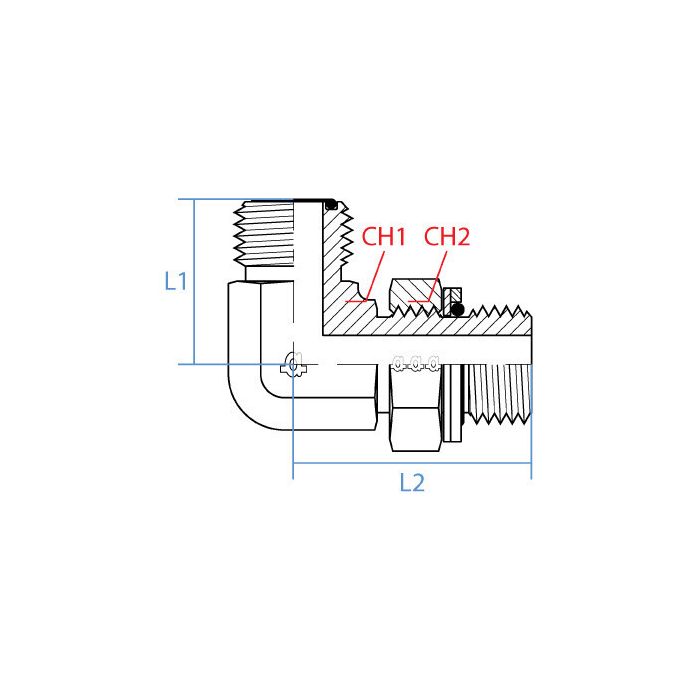

CH1 Width 30mm	CH2 Width 27mm	L1 Length 38mm	L2 Length 50mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-13/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Orfs	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6059-12-08	Product Weight 0.70 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap a fitting on a machine and i need 3/4 male ORFS on one end and 1/2 male BSPP on the other, both at 90 degrees. is that what this is?

Question by: Ross M on Nov 3, 2025, 3:33 PM

For mixed-thread hydraulic setups, this elbow is exactly that combination: a 3/4 inch male ORFS end with 1-13/16-12 UN threads, and a 1/2 inch male BSPP end with G 1/2-14 threads, in a 90 degree elbow shape.

Answer by: Customer Support on Nov 5, 2025, 9:20 AM

Got a machine running both SAE and British fittings and need to tie into a 1/2" BSPP port with a 3/4" ORFS line at a right angle. This the fitting that'll do that?

Question by: Shane B on Feb 8, 2026, 5:57 PM

Yeah, that's exactly what this one's built for. One end is a 3/4" Male ORFS with a 1-13/16-12 UN thread, the other is a 1/2" Male BSPP running G 1/2-14. The 90-degree angle handles the direction change, and since both sides are male, you're threading into female ports on your existing components. Steel construction, so it holds up in working hydraulic environments. Fits the mixed-standard situation you're describing right out of the box.

Answer by: Customer Support on Feb 10, 2026, 7:46 AM
