90*Male Orfs X Mbspp Adj Elbow 6059-10-08

Specifications

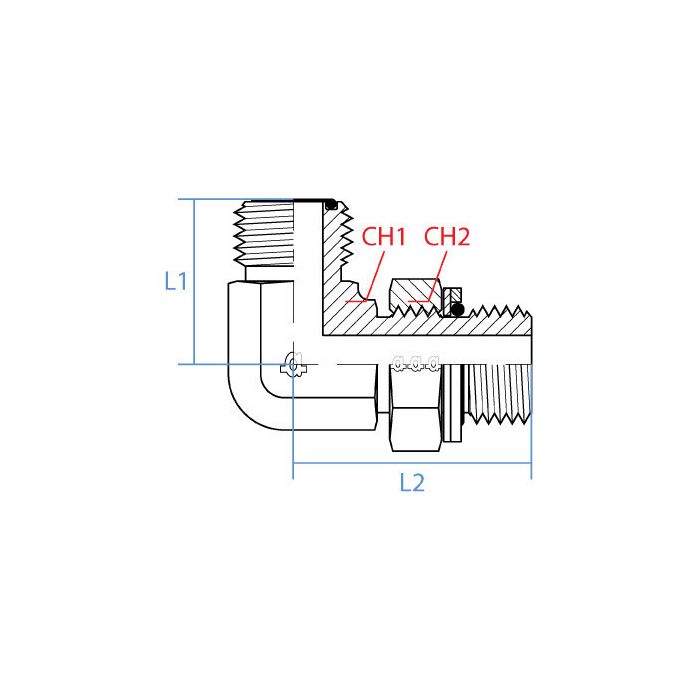

CH1 Width 26.5mm	CH2 Width 26.5mm	L1 Length 35mm	L2 Length 50mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1 - 14 UNS	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Orfs	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6059-10-08	Product Weight 0.55 lbs

Product Questions & Answers 3

Product Questions & Answers

fitting's got a 5/8 ORFS on one end and I need to tie into a 1/2 BSPP port on a piece of imported equipment, this the right part for that?

Question by: Hugh M on Oct 3, 2025, 9:14 PM

Yeah, that's exactly what this fitting is built for. One end is 5/8" male ORFS with a 1-14 UNS thread, and the other is 1/2" male BSPP with a G 1/2-14 thread. If your equipment has a female BSPP port at that size, this crosses right over to your ORFS line without needing extra adapters in between.

Answer by: Customer Support on Oct 5, 2025, 6:58 AM

got a hose end that’s 5/8 ORFS male, will this elbow mate up on that side?

Question by: Travis C on Aug 9, 2025, 9:01 AM

Fit comes down to the thread and style on Side 1, and this elbow is a 5/8 inch male ORFS with a 1-14 UNS callout.

Answer by: Customer Support on Aug 10, 2025, 2:58 PM

Hey, will this elbow fitting work with a standard ORFS fitting on one side and a BSPP fitting on the other? Just wanna make sure before I order.

Question by: Danny H on Feb 4, 2026, 11:06 AM

Absolutely, this 90° elbow Adaptall fitting has a 5/8" male ORFS side and a 1/2" male BSPP side. It's designed to connect those two different types of fittings at a 90-degree angle.

Answer by: Customer Support on Feb 6, 2026, 10:55 AM
