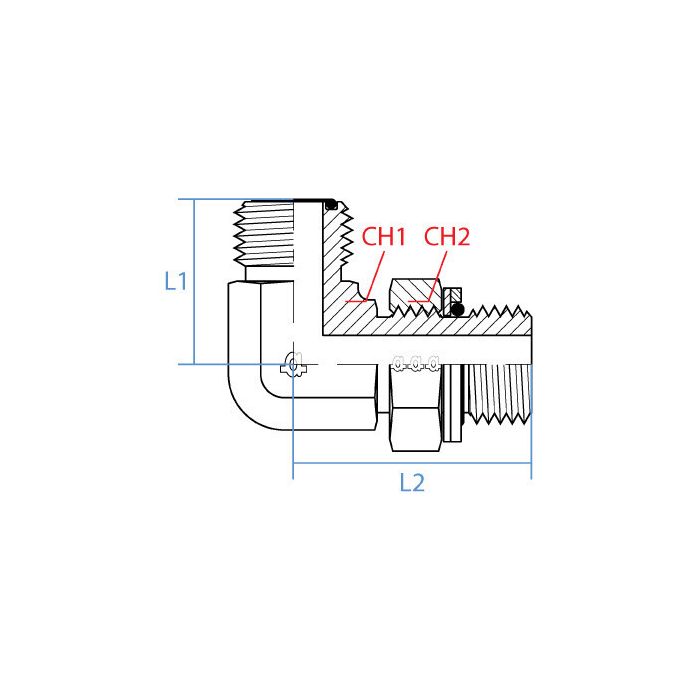

90*Male Orfs X Mbspp Adj Elbow

CH1 Width 27mm	CH2 Width 27mm	L1 Length 33mm	L2 Length 50mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 13/16 - 16 UN	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Orfs	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6059-08-08	Product Weight 0.35 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 13/16-16 UN ORFS male, will this elbow screw right onto it?

Question by: Brett G on Apr 8, 2025, 7:31 PM

On the ORFS side, it has a 1/2 inch male ORFS thread with a 13/16-16 UN callout, so it matches up to a female ORFS port or hose end with that same size and thread.

Answer by: Customer Support on Apr 10, 2025, 6:55 AM

Will this fitting hold up in a high-pressure hydraulic setup, or should I be looking at something beefier?

Question by: Travis S on Nov 3, 2025, 8:21 AM

Designed for robust hydraulic systems, this fitting is made of high-quality steel to withstand demanding, high-pressure industrial environments.

Answer by: Customer Support on Nov 4, 2025, 4:30 PM
