90*Male Orfs X Mbspp Adj Elbow

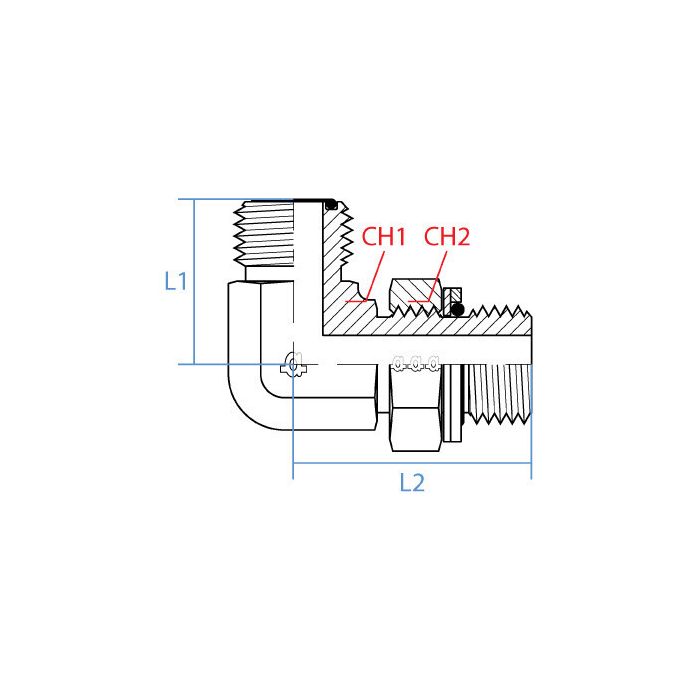

CH1 Width 27mm	CH2 Width 27mm	L1 Length 31mm	L2 Length 50mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 11/16 - 16 UN	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Orfs	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6059-06-08	Product Weight 0.30 lbs

Product Questions & Answers 2

Product Questions & Answers

If I'm hooking up some foreign-made equipment, will this elbow work with the BSPP threads?

Question by: Dustin B on Jun 16, 2025, 9:53 PM

This elbow is designed to adapt between ORFS (O-Ring Face Seal) and BSPP (British Standard Parallel Pipe) threads, so it should work for connecting equipment using those standards. Just double-check your thread sizes to make sure the 1/2" BSPP end fits your equipment.

Answer by: Customer Support on Jun 18, 2025, 6:46 AM

trying to marry up a 3/8 ORFS line to a G 1/2 BSPP port. is this the right elbow for that?

Question by: Hubert H on Oct 25, 2025, 6:00 PM

For that combo, it matches up: one end is a 3/8 inch Male ORFS with 11/16-16 UN threads, and the other end is a 1/2 inch Male BSPP with G 1/2-14 threads. It is a 90 degree adjustable elbow, so you can clock the direction during install.

Answer by: Customer Support on Oct 27, 2025, 12:27 PM
