90*Male Orfs X Mbspp Adj Elbow

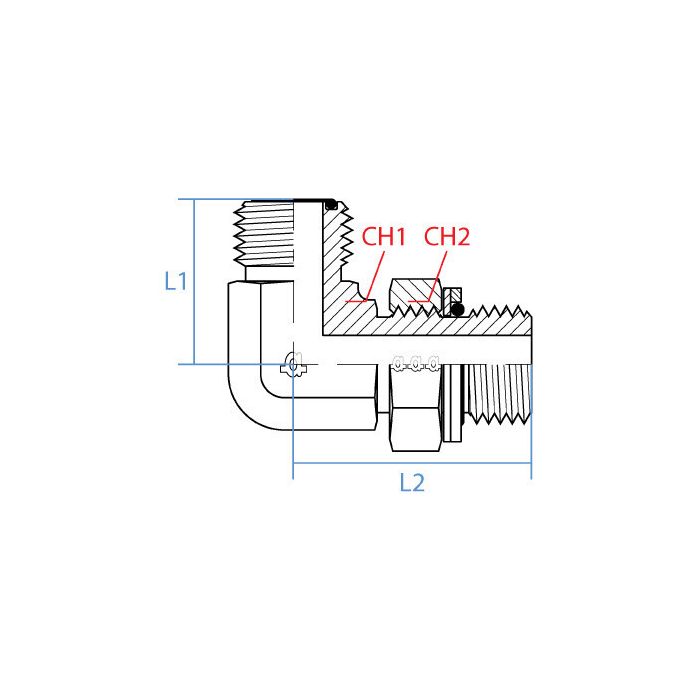

CH1 Width 19mm	CH2 Width 22mm	L1 Length 36.8mm	L2 Length 26.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 11/16 - 16 UN	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Orfs	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6059-06-06	Product Weight 0.25 lbs

Product Questions & Answers 1

Product Questions & Answers

fitting's got a 90 degree angle on it, but can you actually rotate the outlet direction before you lock it down, or is it fixed once you thread it in?

Question by: Kurt M on Nov 24, 2025, 2:46 PM

The elbow is adjustable, meaning you can position the outlet at whatever angle works best for your routing before you finalize the installation. That's the whole point of the adjustable configuration on this style of fitting. Once you've got the direction dialed in, you tighten it down and it holds. Real handy when you're working in a tight spot and a fixed elbow just won't line up right.

Answer by: Customer Support on Nov 25, 2025, 8:26 PM
