90*Male Orfs X Mbspp Adj Elbow

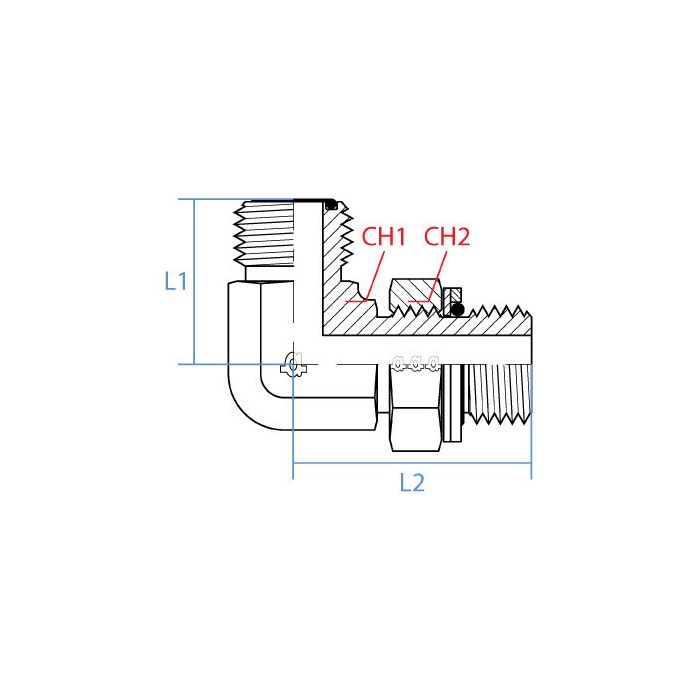

CH1 Width 19mm	CH2 Width 19mm	L1 Length 27mm	L2 Length 38mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 11/16 - 16 UN	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Orfs	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6059-06-04	Product Weight 0.20 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to swap an elbow out, is this one 3/8 ORFS on one end and 1/4 BSPP on the other?

Question by: Sherry M on Oct 13, 2025, 12:26 PM

On the ORFS side you get a 3/8 inch male O-Ring Face Seal with an 11/16 - 16 UN callout, and the other end is a 1/4 inch male BSPP adjustable with a G 1/4 - 19 callout.

Answer by: Customer Support on Oct 15, 2025, 6:17 AM
