90*Male Orfs X Mbspp Adj Elbow

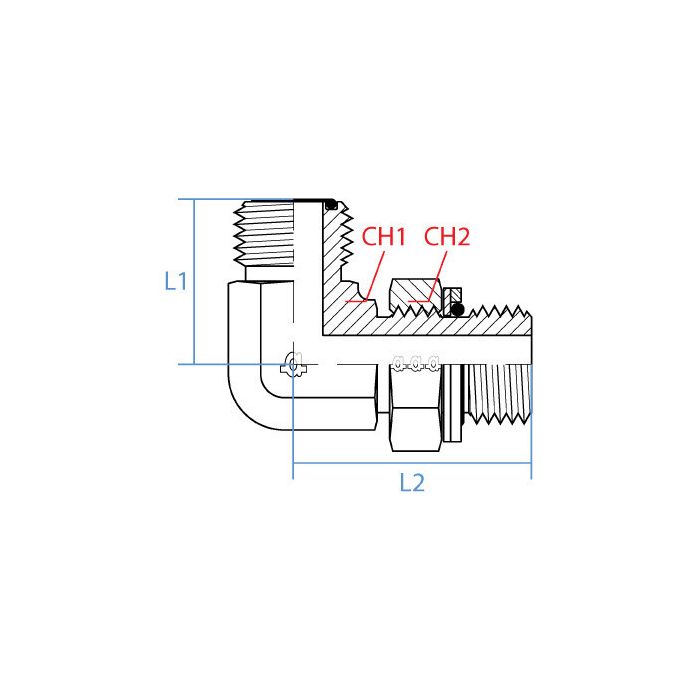

CH1 Width 19mm	CH2 Width 19mm	L1 Length 25mm	L2 Length 37mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Orfs	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6059-04-04	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

fitting's got a 9/16-18 UNF on one end and a G 1/4-19 on the other, that right? just wanna make sure before i order a handful of these

Question by: Glen O on Jan 20, 2026, 9:02 PM

that's correct. The ORFS side runs a 9/16-18 UNF thread and the BSPP side is G 1/4-19. Both ends are 1/4" diameter, so as long as your ports match up on both sides, you're good to go.

Answer by: Customer Support on Jan 22, 2026, 6:58 AM
