90*Male Orfs X Mbspp Adj Elbow 6059-04-02

Specifications

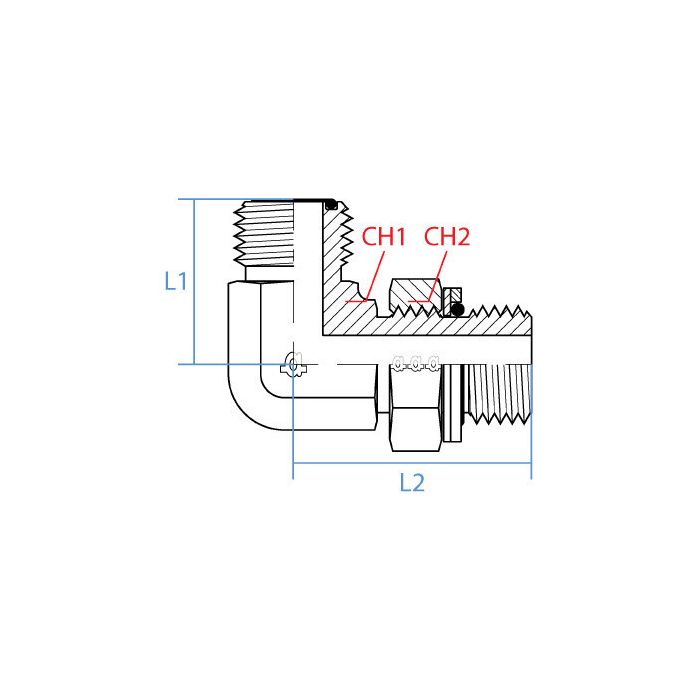

CH1 Width 14mm	CH2 Width 14mm	L1 Length 24mm	L2 Length 31mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Orfs	Side 2 Callout G 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6059-04-02	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Both sides on this fitting are male, right? Just want to make sure before I go trying to thread it into two female ports on my manifold.

Question by: Curt P on Jan 15, 2026, 9:26 AM

Correct on both ends. The ORFS side runs a 9/16-18 UNF male thread at 1/4 inch, and the BSPP side is a G 1/8-28 male thread at 1/8 inch. So yeah, you'll need female receivers on both ports for this one to work.

Answer by: Customer Support on Jan 17, 2026, 7:50 AM

Will this elbow fitting work okay with standard hydraulic fluid?

Question by: Larry W on Feb 4, 2026, 7:17 AM

This Adaptall elbow is made from steel, which makes it a good choice for demanding hydraulic systems where the pressures and vibration can be pretty tough on fittings.

Answer by: Customer Support on Feb 6, 2026, 7:09 AM

trying to swap a straight adapter for an elbow, what threads does this one actually have on each end?

Question by: Terry P on Jun 29, 2025, 8:31 AM

On one side you have a 1/4 inch Male ORFS with a 9/16-18 UNF thread, and on the other side it is a 1/8 inch Male BSPP with a G 1/8-28 thread.

Answer by: Customer Support on Jul 1, 2025, 6:38 AM
