45* Male Orfs X Mbspp Adj. Elb

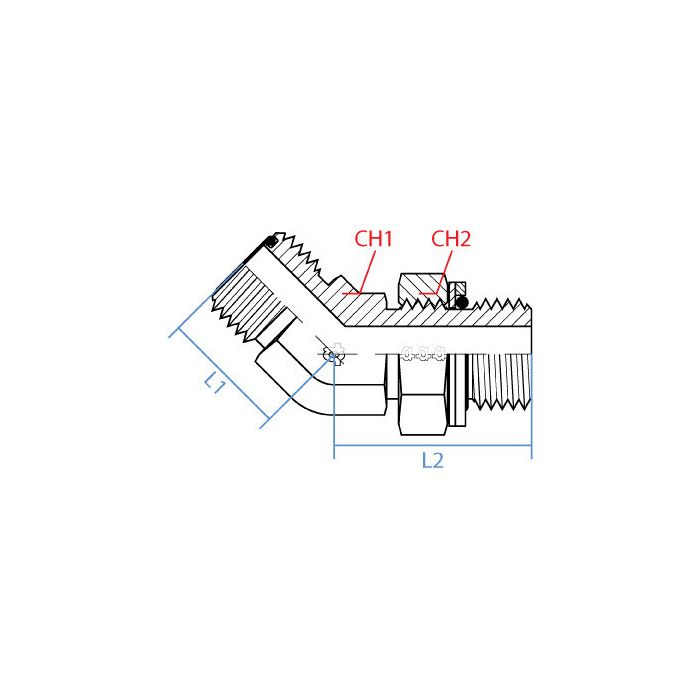

CH1 Width 26.5mm	CH2 Width 26.5mm	L1 Length 25mm	L2 Length 40mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 1 - 14 UNS	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Orfs	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6058-10-08	Product Weight 0.45 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 5/8 ORFS male, will this elbow screw right onto it or am i mixing up thread types

Question by: Kent H on Sep 17, 2025, 8:28 PM

Fit comes down to the thread callouts on each side. Side 1 on this elbow is a 5/8 inch male ORFS with 1-14 UNS threads, so it matches up with a 5/8 ORFS female port or swivel that uses 1-14 UNS.

Answer by: Customer Support on Sep 19, 2025, 3:08 PM

What's the deal with the "adjustable" part of the name? Does that mean I can tighten it to different angles or something?

Question by: Clint W on Jun 10, 2025, 11:32 AM

The "adjustable" in the name refers to the fitting having both ORFS and BSPP ends, which are different standards. This allows you to adapt between the two in your hydraulic system.

Answer by: Customer Support on Jun 11, 2025, 8:59 PM
