45* Male Orfs X Mbspp Adj. Elb

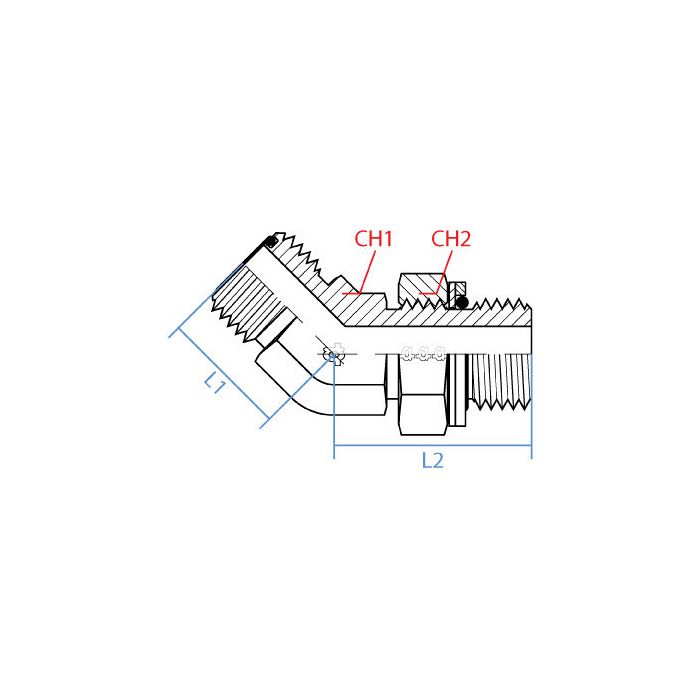

CH1 Width 19mm	CH2 Width 22mm	L1 Length 20mm	L2 Length 31mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 11/16 - 16 UN	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Orfs	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6058-06-06	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

both sides on this fitting are 3/8, does that mean the thread pitch and style are the same too, or are they actually different standards?

Question by: Carl H on Sep 6, 2025, 11:28 AM

Different standards entirely. One side is ORFS, which uses a 11/16-16 UN thread and seals against a flat face with an O-ring. The other is BSPP, running a G 3/8-19 thread that seals differently. Same nominal size, but you can't mix them up, the thread forms and sealing methods don't match between the two.

Answer by: Customer Support on Sep 8, 2025, 8:33 AM

trying to swap a fitting on a hose, is this elbow the one that goes from 3/8 ORFS male to 3/8 BSPP male?

Question by: Dwayne A on Aug 17, 2025, 2:44 PM

For that setup, it matches a 3/8 inch ORFS male on Side 1 with an 11/16-16 UN thread callout, and a 3/8 inch BSPP male on Side 2 with a G 3/8-19 callout. It is a 45 degree adjustable elbow made of steel.

Answer by: Customer Support on Aug 18, 2025, 6:11 PM
