45* Male Orfs X Mbspp Adj. Elb

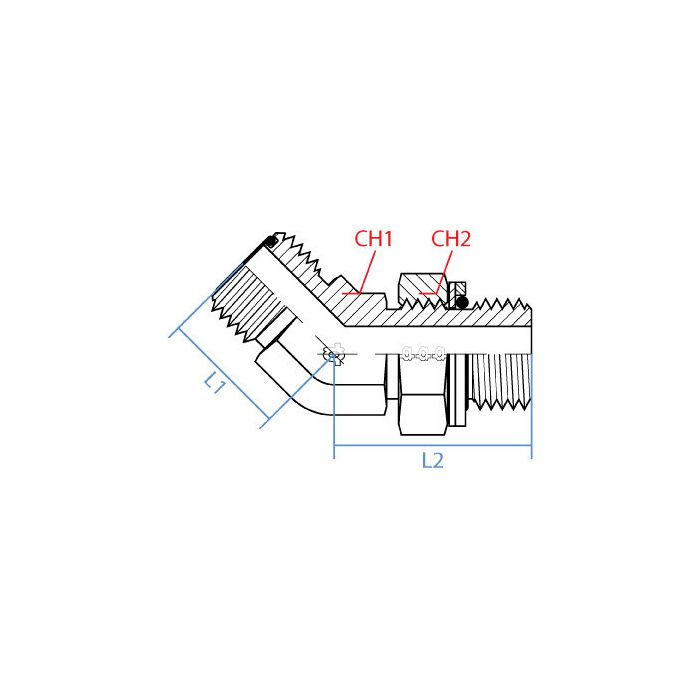

CH1 Width 18.5mm	CH2 Width 18.5mm	L1 Length 21mm	L2 Length 32mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 11/16 - 16 UN	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Orfs	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6058-06-04	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

What size threads does this elbow use?

Question by: Bonnie W on Sep 6, 2025, 6:32 AM

It uses a 11/16 - 16 UN thread on one side and a G 1/4 - 19 thread on the other.

Answer by: Customer Support on Sep 7, 2025, 12:12 PM

thread sizes on both ends of this thing, can you confirm what we're working with before I go pulling lines apart?

Question by: Dean B on Apr 3, 2026, 4:38 PM

Side one runs an 11/16 - 16 UN thread, which is your Male ORFS connection at 3/8 inch size. Side two is a G 1/4 - 19 thread, which is the Male BSPP end at 1/4 inch. Both ends are male, so plan your mating fittings accordingly before you start swapping anything out.

Answer by: Customer Support on Apr 4, 2026, 5:02 PM
