Male Orfs X Male Bspp C/W Seal 6002-20-20

Specifications

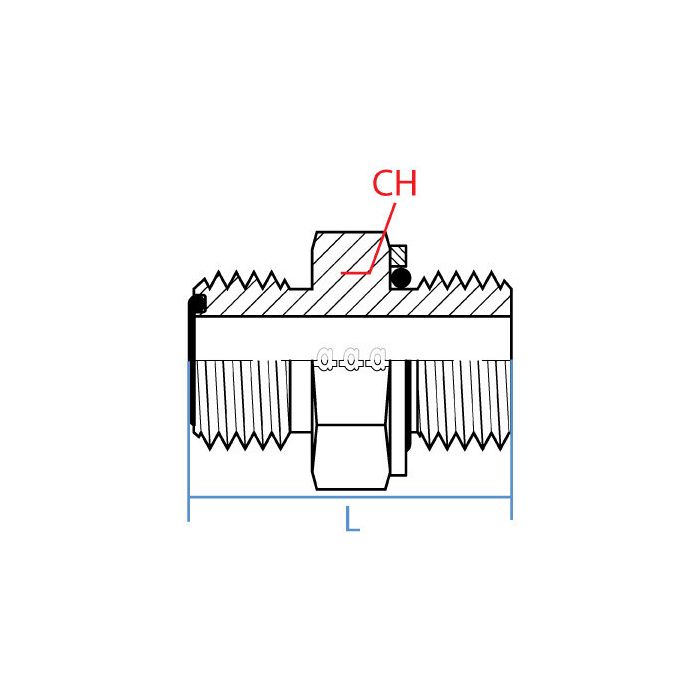

CH Width 50mm	L Length 51.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-11/16 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Orfs	Side 2 Callout G 1-1/4 - 11	Side 2 Gender M	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6002-20-20	Product Weight 0.90 lbs

Product Questions & Answers 3

Product Questions & Answers

Hey, will this here fitting hold up if I'm runnin' hydraulic oil through it pretty much all day, every day?

Question by: Donna C on May 27, 2025, 11:14 AM

Constructed from steel, this adapter is built to withstand demanding environments, ensuring long-lasting performance even with continuous use.

Answer by: Customer Support on May 28, 2025, 3:15 PM

trying to hook up an ORFS line to a BSPP port. is this the right adapter if both sides are 1-1/4?

Question by: Todd G on Jul 3, 2025, 3:12 PM

For that kind of mix-and-match connection, it’s meant to bridge a 1-1/4 inch male ORFS end to a 1-1/4 inch male BSPP end. The thread callouts are 1-11/16 - 12 UN on the ORFS side and G 1-1/4 - 11 on the BSPP side.

Answer by: Customer Support on Jul 5, 2025, 1:10 PM

Got a line running 1-1/4 inch BSPP on one end and need to tie into an ORFS fitting on the other, this the right piece to make that happen?

Question by: Hank R on Oct 10, 2025, 8:32 PM

That's exactly what this adapter is built for. One end is 1-1/4" male ORFS with a 1-11/16-12 UN thread, and the other is 1-1/4" male BSPP running G 1-1/4-11 thread. The integrated seal takes care of leak prevention at the ORFS face, so you're not chasing down a separate seal before you button everything up. Steel construction, straight configuration, so it drops right into a standard inline connection without any offset or angle to work around.

Answer by: Customer Support on Oct 12, 2025, 7:20 AM
