Male Orfs X Male Bspp C/W Seal

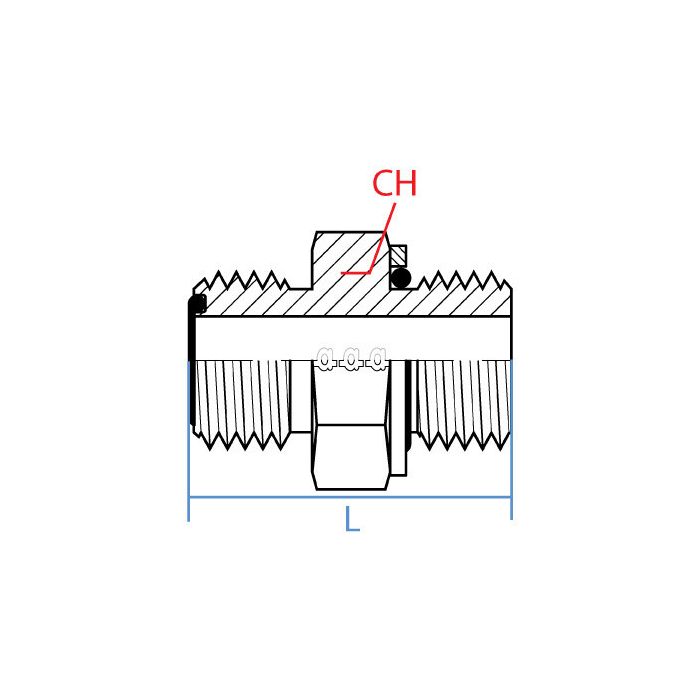

CH Width 46mm	L Length 54.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-11/16 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Orfs	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6002-20-16	Product Weight 0.80 lbs

Product Questions & Answers 2

Product Questions & Answers

What thread types are on each end of this fitting, and what sizes we talking?

Question by: Terry C on Jul 15, 2025, 6:48 AM

One end is a 1-1/4" male ORFS with a 1-11/16 - 12 UN thread callout. The other end is a 1" male BSPP with a G 1 - 11 callout. Both ends are male, so you'll need female counterparts on whatever lines or ports you're connecting to. The fitting runs straight through with no angle, and it comes with a seal included for the BSPP side.

Answer by: Customer Support on Jul 16, 2025, 3:50 PM

What size wrench do I need for installing this fitting? Seems like it's gotta be pretty big.

Question by: Ross B on Oct 19, 2025, 12:12 PM

You'll need a 46mm wrench for the Adaptall Ch Width.

Answer by: Customer Support on Oct 20, 2025, 9:09 PM
