Male Orfs X Male Bspp C/W Seal

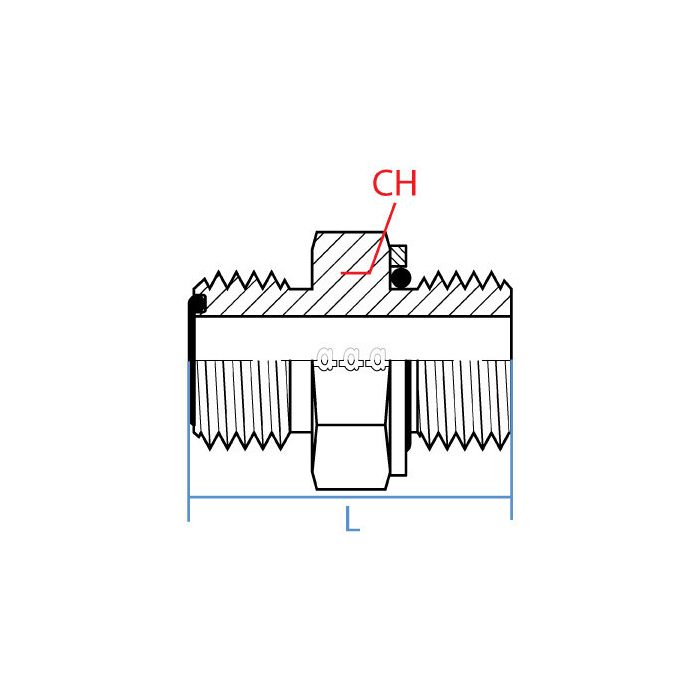

CH Width 41mm	L Length 47.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Orfs	Side 2 Callout G 1 - 11	Side 2 Gender M	Side 2 Size 1"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number C1GL38, Alternate Part Number MI-03504044, Alternate Part Number MINO-03671X58582	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6002-16-16	Product Weight 0.65 lbs

Product Questions & Answers 1

Product Questions & Answers

got a 1 inch ORFS male fitting on my hydraulic line and need to tie into a BSPP male port on a piece of equipment, will this adapter work for that or do I need something in between?

Question by: Rod M on May 23, 2025, 10:40 AM

That's exactly the setup this fitting handles. One end is a 1-inch male ORFS with a 1-7/16-12 UN thread, and the other is a 1-inch male BSPP running G 1-11 thread. It comes with a seal included, so you're not hunting down a separate face seal to make that ORFS end work right. Straight body, steel construction, and it goes together without any additional adapters in between.

Answer by: Customer Support on May 24, 2025, 7:26 PM
