Male Orfs X Male Bspp C/W Seal 6002-16-12

Specifications

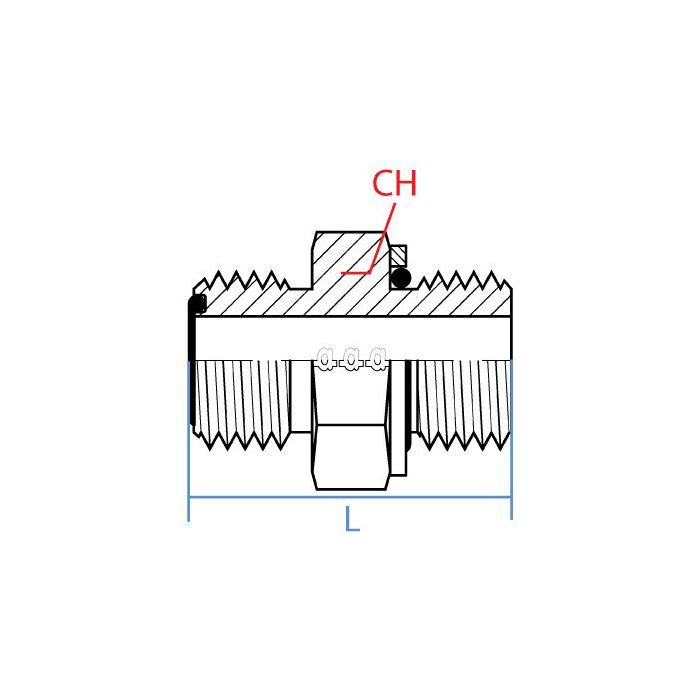

CH Width 38mm	L Length 50.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Orfs	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6002-16-12	Product Weight 0.48 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook an ORFS hose up to a BSPP port, is this the right straight adapter for that

Question by: Travis W on May 16, 2025, 12:14 PM

For tying two thread standards together in a straight run, this one matches a male ORFS on one end and a male BSPP on the other. Side 1 is 1-7/16-12 UN male ORFS in a 1 inch nominal size, and side 2 is G 3/4-14 male BSPP in a 3/4 inch nominal size.

Answer by: Customer Support on May 18, 2025, 6:45 AM

What kinda material is this made from?

Question by: Tammy R on Aug 1, 2025, 12:05 PM

It's made from steel, so it ought to hold up well in most hydraulic applications.

Answer by: Customer Support on Aug 3, 2025, 9:16 AM

Got a piece of equipment running BSPP ports on one end and ORFS fittings on the other, does this adapter hook them up direct, or do I need something in between?

Question by: Daryl J on Mar 17, 2026, 1:38 PM

Straight connection, nothing extra needed. One end is a 1-7/16-12 UN male ORFS thread at 1" nominal, the other is a G 3/4-14 male BSPP thread at 3/4" nominal. The adapter bridges those two standards in a single fitting, so no intermediate pieces or conversion hardware required. It comes with a seal already included for the ORFS side, so you're not hunting down a separate washer or compound to make that end leak-resistant.

Answer by: Customer Support on Mar 19, 2026, 6:05 AM
