Male Orfs X Male Bspp C/W Seal

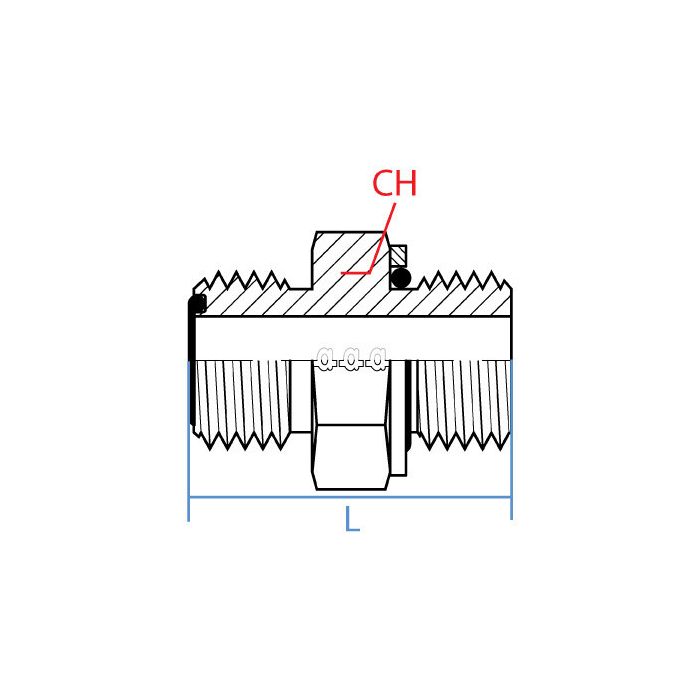

CH Width 32mm	L Length 45.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-13/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Orfs	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6002-12-08	Product Weight 0.28 lbs

Product Questions & Answers 2

Product Questions & Answers

Reckon this fitting would hold up okay in a hydraulic system running around 3000 psi?

Question by: Neil S on Sep 6, 2025, 8:10 AM

This straight adapter, crafted from durable steel, is designed for demanding industrial conditions where reliable performance is needed. However, the product data doesn't specify a pressure rating.

Answer by: Customer Support on Sep 8, 2025, 6:55 AM

trying to replace a straight adapter, will this one match up with a 3/4 ORFS male on one end and a 1/2 BSPP male on the other?

Question by: Clint B on May 12, 2025, 2:37 PM

Fit comes down to the thread callouts, and this adapter is a straight steel Male ORFS x Male BSPP with a 1-13/16 - 12 UN male ORFS end (listed as 3/4) and a G 1/2 - 14 male BSPP end (listed as 1/2).

Answer by: Customer Support on May 14, 2025, 12:29 PM
