Male Orfs X Male Bspp C/W Seal 6002-10-08

Specifications

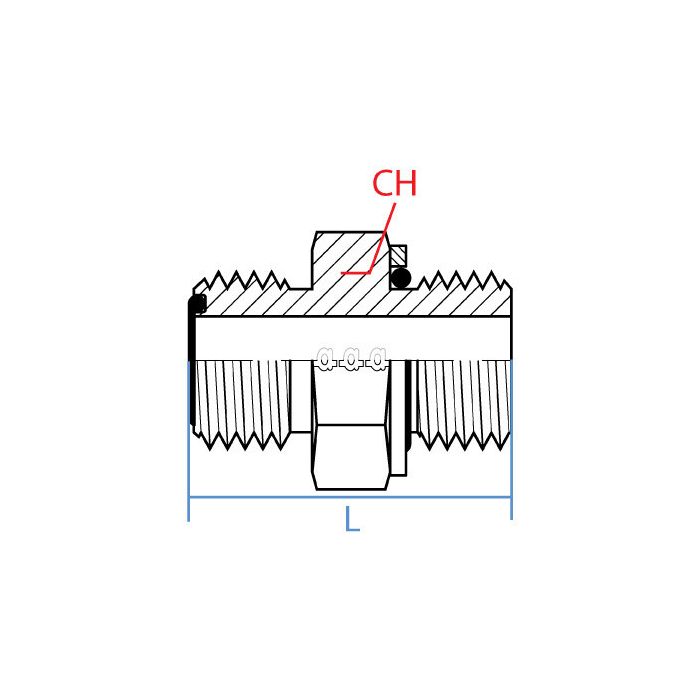

CH Width 27mm	L Length 39.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1 - 14 UNS	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Orfs	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6002-10-08	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

got a machine running ORFS hydraulic lines but the port I'm connecting to is BSPP, does this fitting come with everything needed to make that joint without sourcing a separate seal?

Question by: Gary C on Jun 27, 2025, 8:16 PM

The seal is included with the fitting, so nothing extra is needed at the ORFS face seal end. One side is a 5/8" Male ORFS thread (1-14 UNS) and the other is a 1/2" Male BSPP (G 1/2-14), both male, straight configuration. Steel construction throughout. You thread one end into your BSPP port and the other connects into your ORFS line, and the included seal handles the face seal requirement right there without adding hardware.

Answer by: Customer Support on Jun 29, 2025, 10:29 AM

Will this fitting work to connect a ORFS fitting to a BSPP one?

Question by: Ronnie M on Jan 12, 2026, 7:03 PM

Yes, this fitting is specifically designed to connect a 5/8" Male ORFS thread to a 1/2" Male BSPP thread.

Answer by: Customer Support on Jan 14, 2026, 8:16 AM

trying to hook an ORFS line to a BSPP port. is this the fitting that does 5/8 ORFS over to 1/2 BSPP?

Question by: Stan M on Nov 24, 2025, 4:15 PM

For that thread combo, it matches up. Side 1 is a 5/8 inch Male ORFS with 1-14 UNS threads, and side 2 is a 1/2 inch Male BSPP with G 1/2-14 threads, in a straight steel adapter.

Answer by: Customer Support on Nov 26, 2025, 6:09 AM
