Male Orfs X Male Bspp C/W Seal

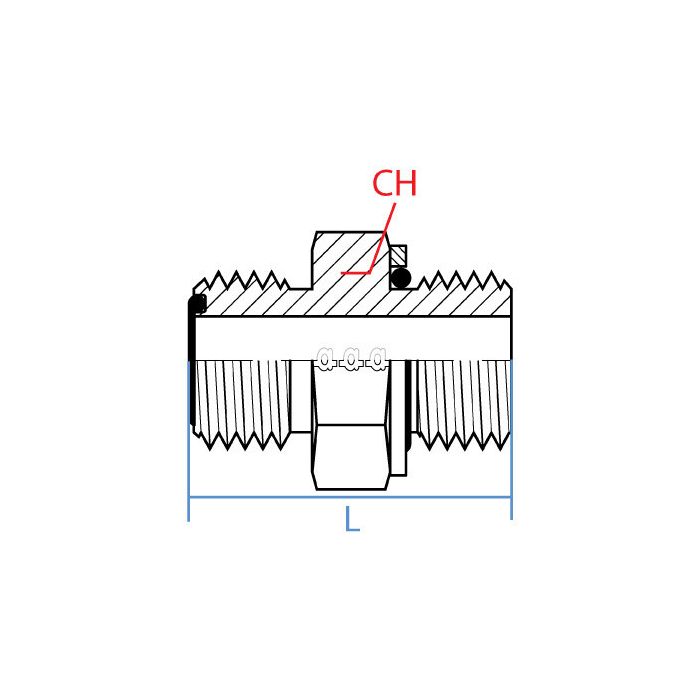

CH Width 19mm	L Length 32mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 11/16 - 16 UN	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Orfs	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6002-06-04	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end thats 3/8 ORFS, what does the other side of this adapter screw into?

Question by: Steve P on Jul 7, 2025, 6:34 AM

On the other end you get a 1/4 inch male BSPP thread, called out as G 1/4 - 19, and it comes with a seal for that BSPP side.

Answer by: Customer Support on Jul 9, 2025, 6:58 AM

Got a machine running BSPP ports on one side and ORFS on the other, this the kind of fitting that bridges those two?

Question by: Roy S on Sep 29, 2025, 6:54 AM

Yeah, that's exactly what this one does. One end is a 3/8" Male ORFS with an 11/16-16 UN thread, and the other is a 1/4" Male BSPP with a G 1/4-19 thread. Steel construction, straight profile, 32mm long. If your circuit needs to cross between those two thread standards, this adapter handles it in a single piece without any extra hardware in between.

Answer by: Customer Support on Sep 30, 2025, 2:26 PM
