Male Orfs X Male Bspp C/W Seal

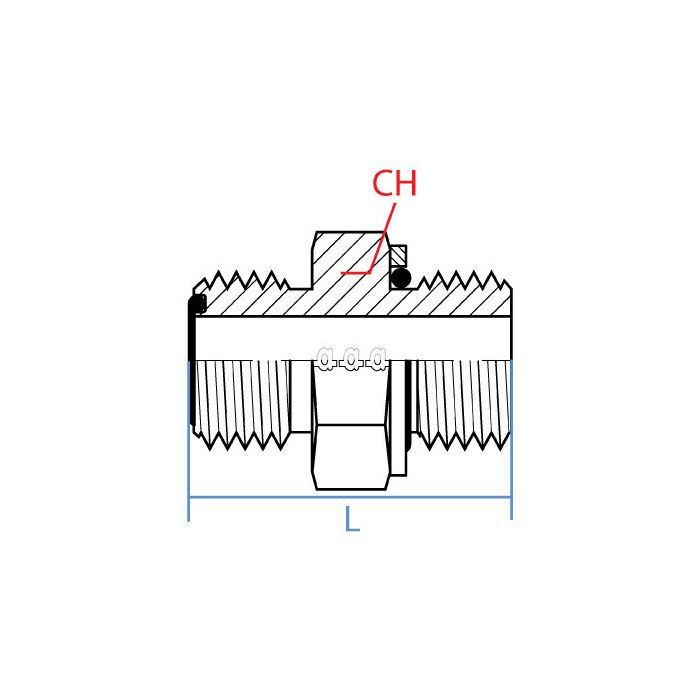

CH Width 24mm	L1 Length 35mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Orfs	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number 80514-06-04, Alternate Part Number FF3800-04-06	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6002-04-06	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a machine running G 3/8 BSPP ports and need to tie into some ORFS lines, this the right fitting to make that happen?

Question by: Kirk T on Dec 14, 2025, 6:16 AM

That's what this adapter is built for. One end threads in as a 9/16-18 UNF male ORFS and the other end is a G 3/8-19 male BSPP, so it bridges those two thread standards in a single straight fitting. It comes with a seal already included, so you're not hunting down a separate face seal to get a leak-free connection on the ORFS side. Steel construction, 35mm long, 24mm across the wrench flats. Adaptall part number is 6002-04-06 if you need to cross-reference it.

Answer by: Customer Support on Dec 15, 2025, 7:38 AM
