Male Orfs X Male Bspp C/W Seal

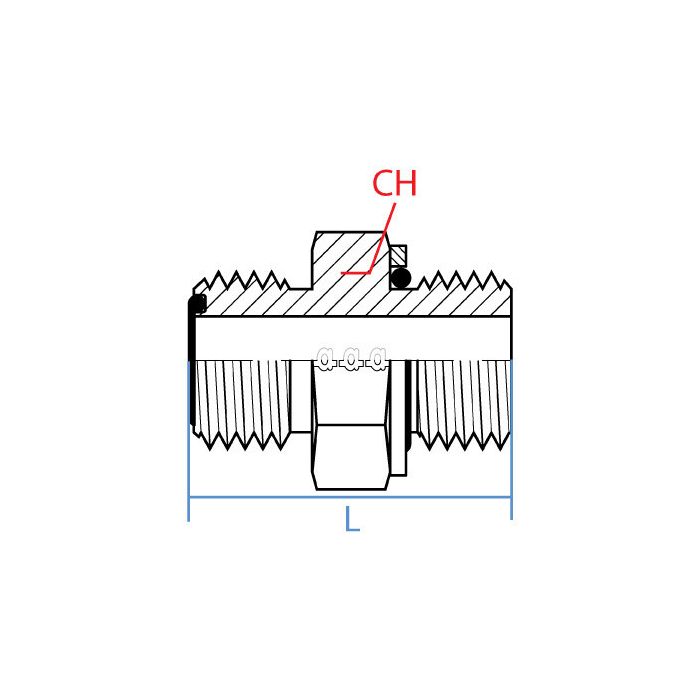

CH Width 19mm	L Length 30.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Orfs	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number 80514-04-04, Alternate Part Number FF3800-04-04	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6002-04-04	Product Weight 0.09 lbs

Product Questions & Answers 1

Product Questions & Answers

what's the thread setup on this adapter, one side metric and the other standard or what?

Question by: Neil G on Sep 3, 2025, 9:40 PM

Both sides are 1/4" in size, but the thread types are different. One end is 9/16-18 UNF, which is the ORFS male side, and the other is G 1/4-19, which is the BSPP male side. So yeah, you're bridging two different thread standards with one straight steel adapter. It comes with a seal included, so you're not hunting around for an extra face seal to make the ORFS end work right.

Answer by: Customer Support on Sep 5, 2025, 3:27 PM
