Adaptall 45* Din X Male Bspp Adjustable 5058S-20-12

Specifications

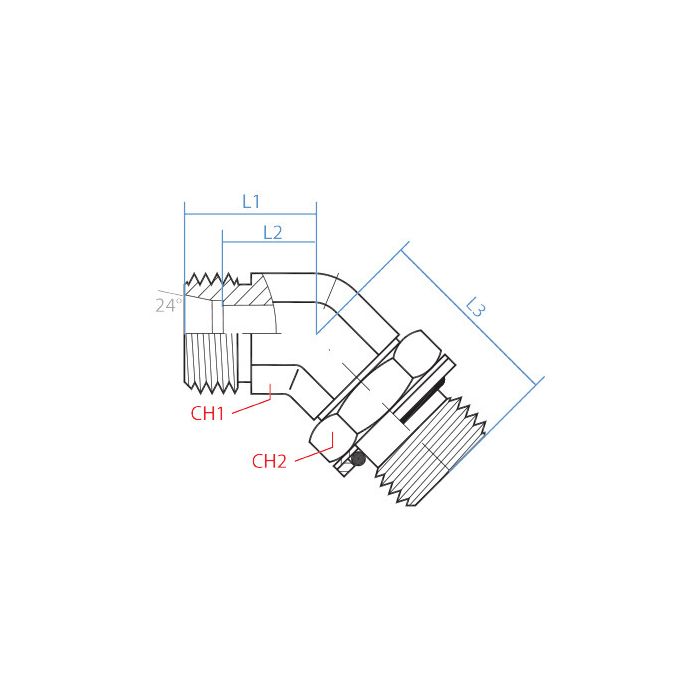

CH1 Width 27mm	CH2 Width 36mm	L1 Length 27mm	L2 Length 16.5mm	L3 Length 46mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size S20	Side 1 Type Din Tube	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5058S-20-12	Product Weight 0.57 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a hydraulic line running at a 45 degree angle off a manifold and need something that'll bridge a DIN tube side to a BSPP port, this the right part for that?

Question by: Neal D on Apr 5, 2026, 5:25 PM

For that exact situation, yeah, this fitting does the job. One end is M30 x 2.0 male DIN tube, the other is G 3/4 - 14 male BSPP, and the 45 degree elbow geometry means you're not fighting the line angle to make the connection work. It's steel construction, made by Adaptall, and the adjustable design gives you some rotational flexibility to get the alignment right before you lock it down. Side 1 is an S20 size, Side 2 is 3/4 inch, so just confirm those match up with what you're working with and you're good to go.

Answer by: Customer Support on Apr 7, 2026, 7:02 AM

What size is the thread on the BSPP end of this fitting? Just want to make sure it'll match up with what I got.

Question by: Brent W on Feb 1, 2026, 6:09 PM

The BSPP side of this fitting has a G 3/4 - 14 male thread.

Answer by: Customer Support on Feb 3, 2026, 9:00 AM
