45* Din X Male Bspp Adjustable

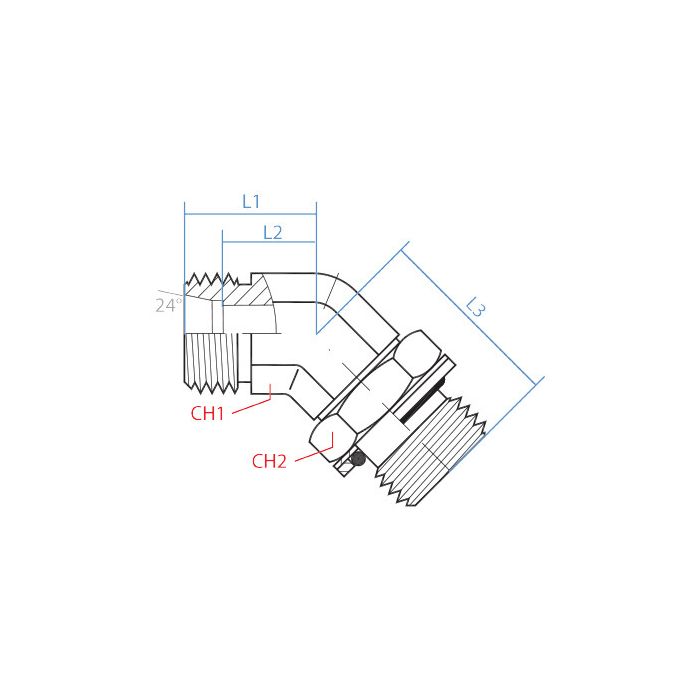

CH1 Width 27mm	CH2 Width 27mm	L1 Length 25mm	L2 Length 16.5mm	L3 Length 43mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5058S-16-08	Product Weight 0.41 lbs

Product Questions & Answers 1

Product Questions & Answers

fitting's got a 45 degree angle on it -- does that mean the BSPP side can still be rotated to point whichever direction I need before I lock it down?

Question by: Shawn C on Aug 27, 2025, 6:01 AM

Yeah, that adjustable feature is exactly what makes this fitting useful in tighter spots. The BSPP male side can be swiveled to whatever orientation works for your routing before you lock it in place. So even with the 45-degree elbow built into the body, you've still got that positional flexibility on the G 1/2-14 end. Makes a real difference when you're working around existing lines or frame members and a fixed-angle fitting just won't cooperate.

Answer by: Customer Support on Aug 28, 2025, 2:57 PM
