does this plug work with standard ISO series A couplings or is it specific to the Hansen 5600 line?
Question by: Shane M on Sep 3, 2025, 9:25 AM
The 5610-8-10S is certified to ISO 7241-1 Series A, so it will mate with any coupling body that meets that same standard. The 5600 Series follows that spec, and other brands built to ISO 7241-1 Series A should accept it as well. The ball lock mechanism is what handles the connection, so as long as the mating half is Series A compliant at the 3/4 port size, you're in good shape.
Answer by: Customer Support on Sep 4, 2025, 12:54 PM
got a 3/4 port on my setup. is this the male half with the SAE ORB end, or am i lookin at the wrong one
Question by: Carl F on Sep 26, 2025, 2:36 PM

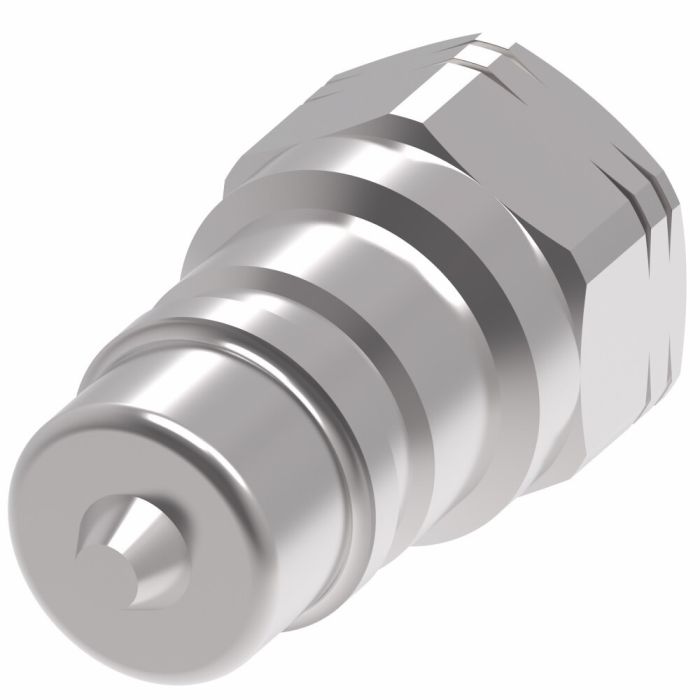

This part is the male half of a quick disconnect coupling with a 3/4 inch port size and an SAE ORB end on one side. The other side is a push-to-connect style with a ball lock internal connection.
Answer by: Customer Support on Sep 28, 2025, 7:01 AM
Will this Eaton fitting work with hydraulic fluid in my tractor?
Question by: Brett A on Nov 1, 2025, 12:42 PM
This coupling is designed for hydraulic fluid transfer, so it should work just fine in your tractor's hydraulic system.
Answer by: Customer Support on Nov 2, 2025, 3:13 PM
does this plug work with SAE ORB ports, or do i need some kind of adapter to hook it up?
Question by: Hubert K on Apr 29, 2025, 6:56 AM
SAE ORB is the port type on the female end of this coupling, so if your system already runs SAE O-ring Boss ports at 3/4 inch, it threads right in without any adapter in between. The male half connects via push-to-connect with a ball lock, so once the port side is matched up, connection on the other end is straightforward. No special tools required to make or break the connection.
Answer by: Customer Support on Apr 30, 2025, 8:16 AM
