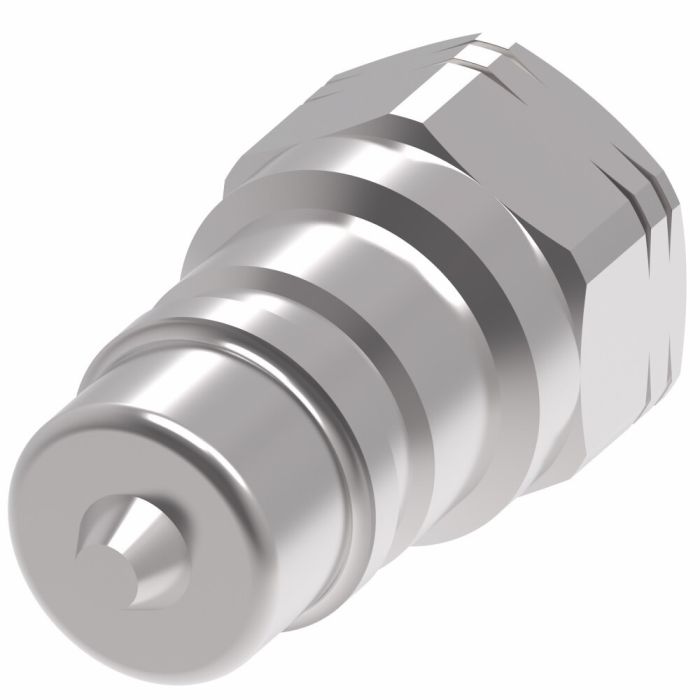

Danfoss / Eaton HYD COUP Male Half 5610-12-12S

Specifications

Alternate Part Numbers Alternate Part Number 045-1010-001	Application Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles	Certifications ISO 7241-1 Series A	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13555	End Type 1 Push to Connect	End Type 2 SAE ORB	Features Quick connect and disconnect\|No need for special tools\|Exceeds ISO 16028 operating pressures	Flow Rate1 28 gallons per minute	ICC Quick Disconnect Couplings	Internal Connection Type Ball Lock	Item Type Male Half	Language English	Minimum Working Temperature -40	Net Pack Quantity Units EA	NMFC 50	Port Size 1 1/16	Product Material Carbon Steel	Product Width 1.12	Seal Material Buna-N	Sub Brand Hansen	Supplier Part Number 5610-12-12S	Valve Type 2 way	Product Weight 0.46 lbs

Product Questions & Answers 3

Product Questions & Answers

Does this plug work down to -40 degrees, or is that just for the body and the seals give out before that?

Question by: Rick P on Sep 9, 2025, 3:45 PM

Both the carbon steel body and the Buna-N seals are rated to handle temperatures as low as -40 degrees, so the whole assembly is good at that threshold, not just the housing. Whether you're running equipment through a hard freeze or parking it outside overnight in bitter cold, this coupling is built to stay functional at that lower limit.

Answer by: Customer Support on Sep 11, 2025, 7:14 AM

What kind of equipment is this typically used on?

Question by: Melvin L on Feb 21, 2026, 3:20 PM

This quick disconnect coupling plug is often found on agricultural and construction equipment. It's also used in in-plant manufacturing, dump trucks, snow plows, and maintenance vehicles.

Answer by: Customer Support on Feb 22, 2026, 7:44 PM

got a 5600 series setup already, is this the male half plug with the ball lock and SAE ORB end?

Question by: Earl A on Mar 13, 2026, 10:35 AM

For the 5600 Series quick disconnects, this part is the male half plug and it uses an internal ball lock connection. The ends called out are push to connect on one side and SAE ORB on the other, with a 1 1/16 port size.

Answer by: Customer Support on Mar 14, 2026, 11:59 AM
