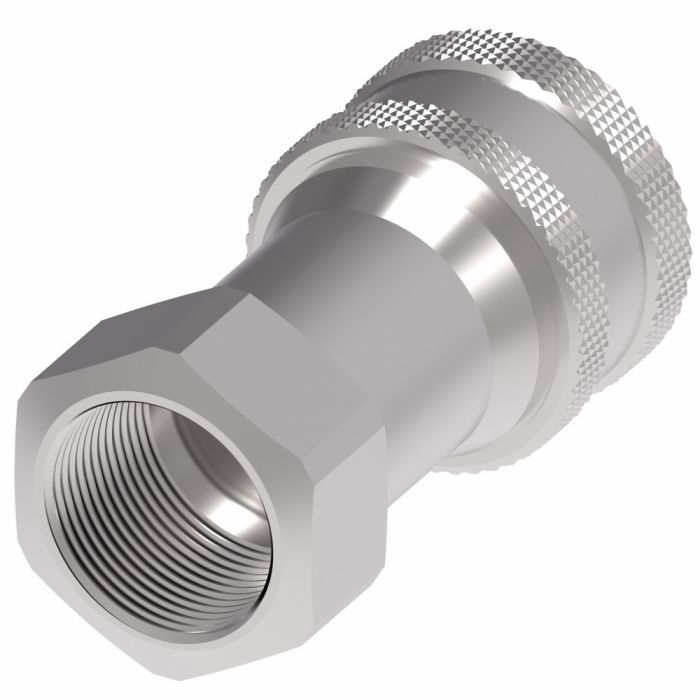

DANFOSS / EATON COUPLINGS - CODE CP

Alternate Part Numbers
Alternate Part Number 12365755-4, Alternate Part Number MI-00298118, Alternate Part Number MINO-00015F46600
Application
Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles
Certifications
ISO 7241-1 Series A
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 2
0.56
End Type 1
Push to Connect
End Type 2
SAE ORB
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
Flow Rate1
6 gallons per minute
ICC
Quick Disconnect Couplings
Internal Connection Type
Ball Lock
Item Type
Female Half
Language
English
Minimum Working Temperature
-40
Net Pack Quantity Units
EA
NMFC
50
Port Size
9/16
Product Material
Carbon Steel
Product Width
1.23
Seal Material
Buna-N
Sub Brand
Hansen
Supplier Part Number
5608-6-6S
Valve Type
2 way
Product Weight
0.37 lbs

Product Questions & Answers

does this socket work with the hansen 5600 series bodies, or do i need a different series altogether?
Question by: Ralph A on Dec 27, 2025, 7:33 PM
Ball lock internal connection and ISO 7241-1 Series A certification means it mates correctly with Hansen 5600 series couplings. The socket half uses a push-to-connect end on one side and a 9/16 SAE ORB port on the other, so as long as your body matches that series and your port fits a 9/16 ORB thread, you should be in good shape.
Answer by: Customer Support on Dec 29, 2025, 10:48 AM
What size is this Eaton coupling? I want to make sure it's the right fit.
Question by: Glen S on Aug 24, 2025, 6:46 PM
This Eaton/Danfoss coupling has a 9/16 port size and a 0.5625 end size 2, with female ends.
Answer by: Customer Support on Aug 26, 2025, 6:32 AM
