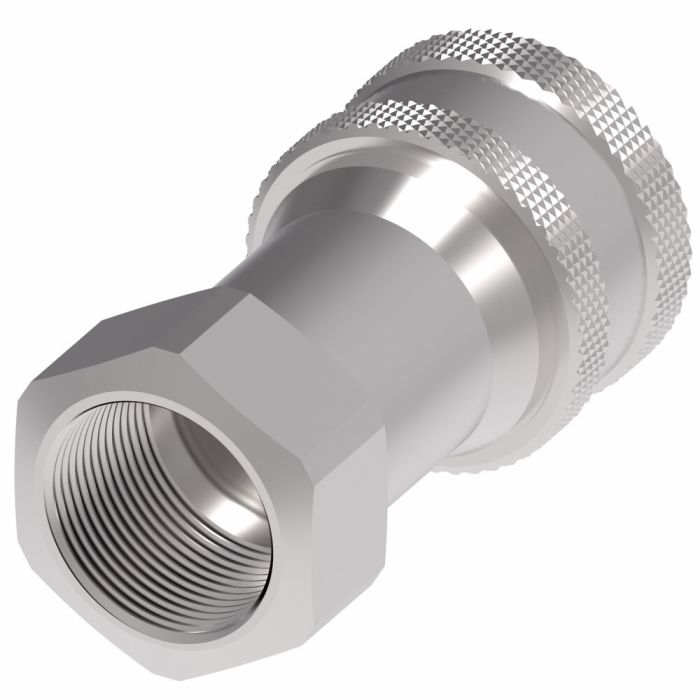

Danfoss / Eaton HYD COUP FEM Half 5608-12-12S

Specifications

Application Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles	Certifications ISO 7241-1 Series A	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13555	End Size 2 1	End Type 1 Push to Connect	End Type 2 SAE ORB	Features Quick connect and disconnect\|No need for special tools\|Exceeds ISO 16028 operating pressures	Flow Rate1 28 gallons per minute	ICC Quick Disconnect Couplings	Internal Connection Type Ball Lock	Item Type Female Half	Language English	Minimum Working Temperature -40	Net Pack Quantity Units EA	NMFC 50	Port Size 1 1/16	Product Material Carbon Steel	Product Width 1.81	Seal Material Buna-N	Sub Brand Hansen	Supplier Part Number 5608-12-12S	Valve Type 2 way	Product Weight 1.25 lbs

Product Questions & Answers 2

Product Questions & Answers

does this thing hook up without tools? got a hydraulic line on a dump trailer i need to swap out pretty regular and tired of messing with wrenches every time

Question by: Earl P on Dec 5, 2025, 3:10 PM

Ball lock quick disconnect couplings like this one are built for exactly that kind of repeated connect and disconnect work. You push to connect on one end, and the ball lock mechanism holds it secure without needing any tools to make or break the connection. The other end uses a 1 1/16 inch SAE ORB port, so you will need the right fitting on the equipment side to thread into that port, but once that's in place, the coupling itself snaps together by hand.

Answer by: Customer Support on Dec 6, 2025, 4:35 PM

Will this Eaton fitting work with other quick disconnects that meet the ISO 7241-1 Series A standard?

Question by: Gary R on Nov 29, 2025, 4:11 PM

This female half hydraulic coupler is indeed designed to meet ISO 7241-1 Series A, so it should be compatible with other parts made to that spec.

Answer by: Customer Support on Dec 1, 2025, 6:08 AM
