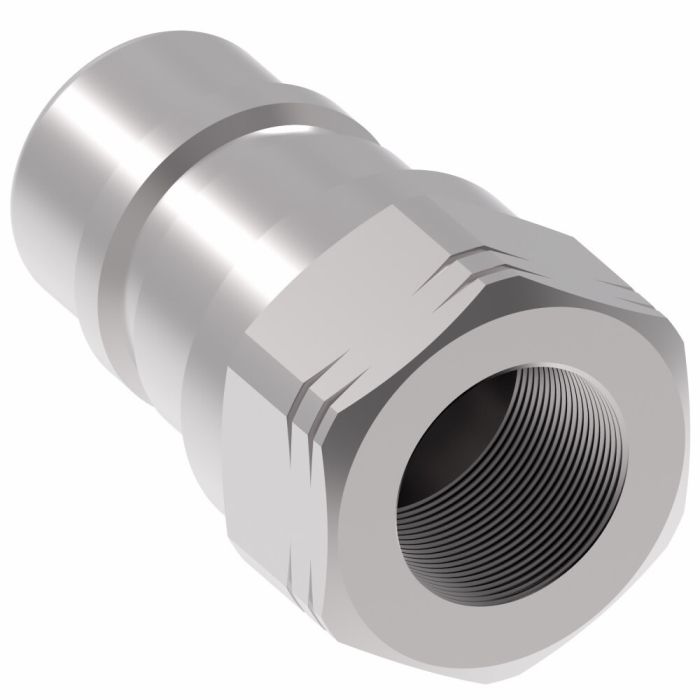

5600 Series Industrial Interchange Quick Disconnect, Male Half, -10 Coupling, 7/8-14 Female SAE O-Ring Boss (Straight Thread O-Ring)

Ask A Question
A
2.08
Air Inclusion Max
2.80 Cubic_centimeter
Application
Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles
Coupling Size
-10
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.88
End Size 2
0.88
End Type 1
Push to Connect
End Type 2
SAE ORB
Fluid Loss
2.80 Cubic_centimeter
Minimum Working Temperature
-40
Rated Flow
12
Rated Flow
12
Seal Material
Buna-N
Seal Part if Included
21016-10S
Supplier Part Number
5610-10-10S
Thread 1
7/8-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1EN50, Alternate Part Number MI-00298128, Alternate Part Number MINO-00015F46608
Product Weight
0.22 lbs
Product Questions & Answers 1

Product Questions & Answers

runs on a dump truck that sees some pretty rough winters, just wanna make sure this fitting can handle the cold without cracking or seizing up on me
Question by: Jimmy S on Jul 16, 2025, 2:38 PM
Cold weather operation is built into this coupling. It's rated down to -40 degrees, so freezing temps common to winter dump truck and snowplow setups won't push it past its limits. The zinc-plated steel body holds up to the wear and the Buna-N seals stay functional at those low temperatures. It's a fit for exactly that kind of application.
Answer by: Customer Support on Jul 18, 2025, 11:06 AM
