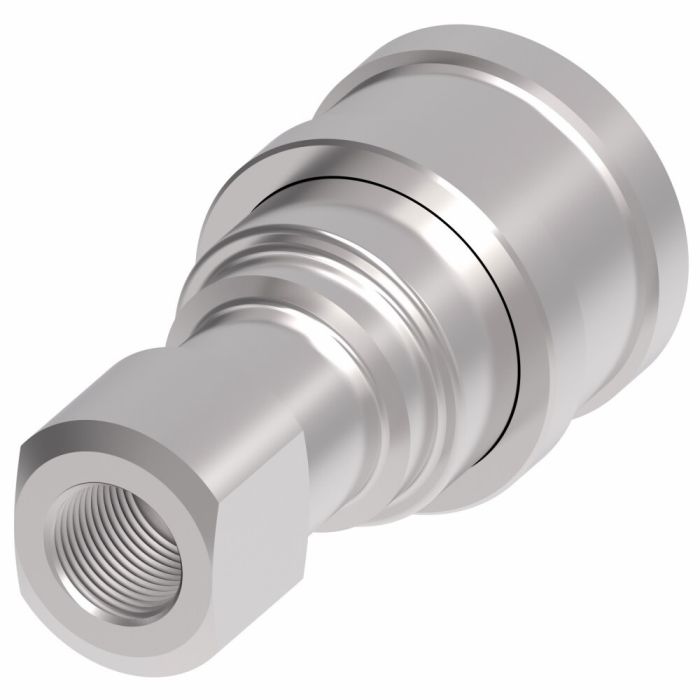

5600 Series Industrial Interchange Quick Disconnect, Female Half, -10 Coupling, 7/8-14 Female SAE O-Ring Boss (Straight Thread O-Ring)

Ask A Question
A
2.81
Air Inclusion Max
2.80 Cubic_centimeter
Application
Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles
B
1.52
Coupling Size
-10
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.88
End Size 2
0.88
End Type 1
Push to Connect
End Type 2
SAE ORB
Fluid Loss
1.30 Cubic_centimeter
Minimum Working Temperature
-40
Rated Flow
12
Rated Flow
12
Seal Material
Buna-N
Seal Part if Included
22550-211|21016-10S|21017-10
Supplier Part Number
5608-10-10S
Thread 1
7/8-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1EN49, Alternate Part Number MI-00298121, Alternate Part Number MINO-00015F46602
Product Weight
1.08 lbs
Product Questions & Answers 1

Product Questions & Answers

Got a 7/8-14 ORB port on a hydraulic manifold for a piece of construction equipment. This the right fitting to thread straight into it?
Question by: Tammy P on Jun 13, 2025, 4:30 PM
For a 7/8-14 female SAE O-Ring Boss port, yes, this is the correct match. The coupling threads directly into that port using the straight thread O-ring connection, which gives you a reliable leak-free seal without pipe thread sealant. The push-to-connect end is the female half, so you'd be mating it to the corresponding male plug when connecting your fluid line.
Answer by: Customer Support on Jun 15, 2025, 7:25 AM

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Buy Now
5608-10-10S -10 7/8-14 Buna-N 2.81 1.52
