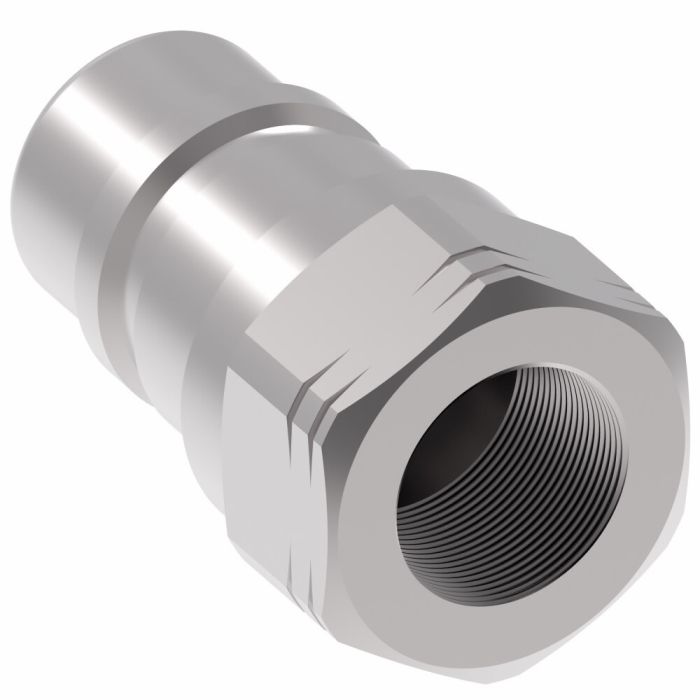

5600 Series Industrial Interchange Quick Disconnect, Male Half, -04 Coupling, 1/8-27 Female Pipe

A 1.17	Application Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles	Coupling Size -04	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13555	End Size 1 0.13	End Size 2 0.13	End Type 1 Push to Connect	End Type 2 NPT	Minimum Working Temperature -40	Rated Flow 1	Rated Flow 1	Seal Material Buna-N	Supplier Part Number 5602-2-4S	Thread 1 1/8-27	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1BT14, Alternate Part Number MI-00331140, Alternate Part Number MINO-00015F71349	Product Weight 0.05 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this here fitting work with a standard hydraulic setup on my tractor?

Question by: Wayne H on Dec 27, 2025, 4:01 PM

For hydraulic fluid transfer, this male half quick disconnect is commonly used in agricultural equipment. It's built to the ISO 7241/1 Series A standard, so it should be compatible with other parts made to that spec.

Answer by: Customer Support on Dec 29, 2025, 7:47 AM

does this thing work with a standard 1/8 NPT female port, or do I need some kind of adapter to hook it up?

Question by: Terry M on Aug 31, 2025, 6:42 AM

The male half threads directly into a 1/8-27 female pipe thread port, so no adapter needed if your equipment already has that size. The -04 coupling size lines up with that thread spec, and the push-pull ball latch handles the fluid line connection on the other end. Pretty straightforward swap if you're replacing an existing fitting in that size.

Answer by: Customer Support on Sep 1, 2025, 2:42 PM

Similar Products

Model Number	Coupling Size	Thread 1	Seal Material	A
5602-12-12S	-12	3/4-14	Buna-N	2.28
5602-4-4S	-04	1/4-18	Buna-N	1.24
5602-6-6S	-06	3/8-18	Buna-N	1.4
5602-8-10S	-10	1/2-14	Buna-N	1.89
5602-12-10S	-10	3/4-14	Buna-N	2.03
5602-16-16S	-16	1-11-1/2	Buna-N	2.77
5602-2-4S	-04	1/8-27	Buna-N	1.17
