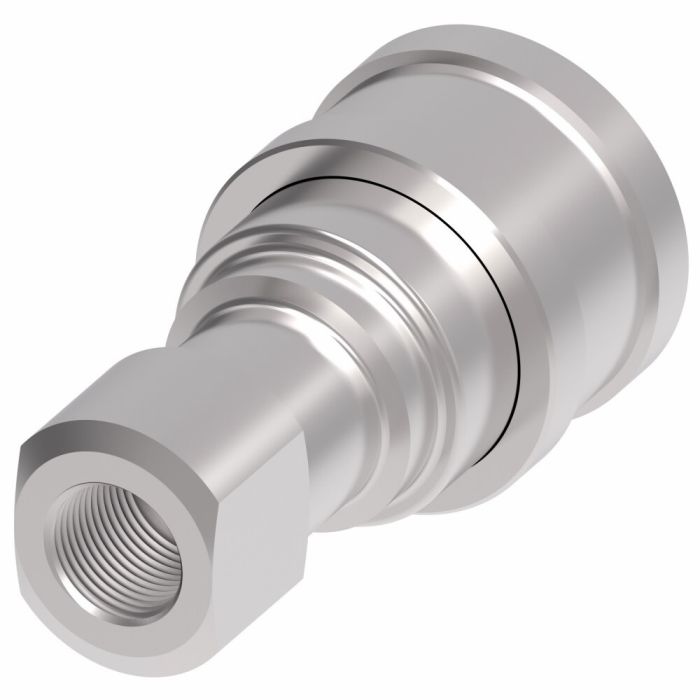

main product photo

5600 Series Industrial Interchange Quick Disconnect, Female Half, -04 Coupling, 1/8-27 Female Pipe

Ask A Question
A
1.81
Air Inclusion Max
0.50 Cubic_centimeter
Application
Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles
B
1.08
Coupling Size
-04
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.13
End Size 2
0.13
End Type 1
Push to Connect
End Type 2
NPT
Fluid Loss
0.50 Cubic_centimeter
Minimum Working Temperature
-40
Rated Flow
1
Rated Flow
1
Seal Material
Buna-N
Seal Part if Included
22550-112
Supplier Part Number
5601-2-4S
Thread 1
1/8-27
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1BS96, Alternate Part Number MI-00331155, Alternate Part Number MINO-00015F71429
Product Weight
0.99 lbs
Product Questions & Answers 2

Product Questions & Answers

What size wrench do I need to tighten this thing down?
Question by: Larry P on Aug 30, 2025, 11:45 AM
The 5600 series socket has a 1/8-27 female pipe thread.
Answer by: Customer Support on Aug 31, 2025, 12:07 PM
trying to figure out if this thing'll work on my ag equipment that runs standard hydraulic lines, any issue with that?
Question by: Hank C on Dec 22, 2025, 6:50 AM
Agricultural equipment is actually one of the primary applications this coupling was built for. The 5600 Series conforms to ISO standard 7241/1 Series A dimensions, which means it plays well with other ISO Series A components in the field. The Buna-N seals hold up across a wide range of hydraulic fluids, and the self-sealing poppet valve keeps fluid loss down to just 0.50 cubic centimeters at disconnect. As long as your existing lines use 1/8-27 female pipe thread connections, this female half should fit right in.
Answer by: Customer Support on Dec 23, 2025, 4:03 PM

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Buy Now
5601-4-4S -04 1/4-18 Buna-N 1.81 1.08
5601-6-6S -06 3/8-18 Buna-N 2.09 1.27
5601-8-10S -10 1/2-14 Buna-N 2.76 1.52
5601-12-10S -10 3/4-14 Buna-N 2.91 1.52
5601-12-12S -12 3/4-14 Buna-N 3.25 1.84
5601-16-16S -16 1-11-1/2 Buna-N 4.09 2.15
5601-2-4S -04 1/8-27 Buna-N 1.81 1.08
