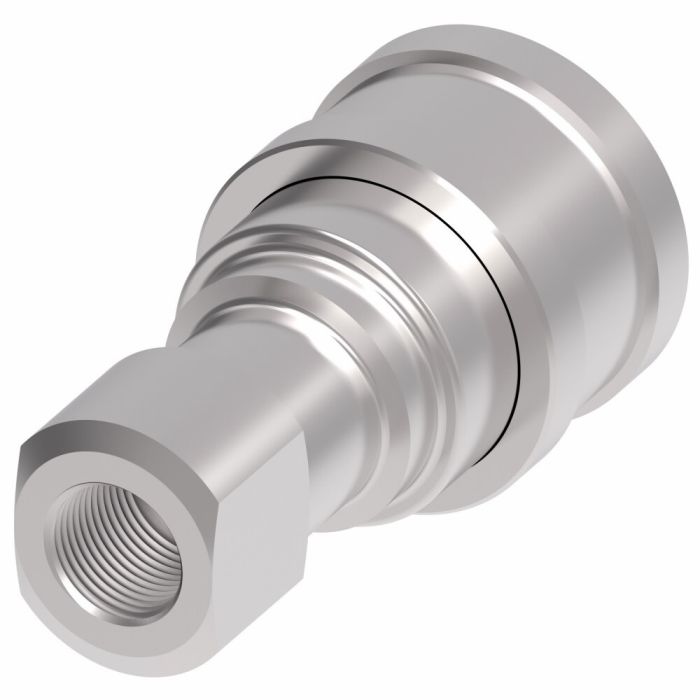

5600 Series Industrial Interchange Quick Disconnect, Female Half, -16 Coupling, 1-11-1/2 Female Pipe

Ask A Question
A
4.09
Air Inclusion Max
14.20 Cubic_centimeter
Application
Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles
B
2.15
Coupling Size
-16
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
1
End Size 2
1
End Type 1
Push to Connect
End Type 2
NPT
Fluid Loss
14.20 Cubic_centimeter
Minimum Working Temperature
-40
Rated Flow
50
Rated Flow
50
Seal Material
Buna-N
Supplier Part Number
5601-16-16S
Thread 1
1-11-1/2
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number 20011511, Alternate Part Number C1BS95, Alternate Part Number MI-00331568, Alternate Part Number MINO-00402F71909
Product Weight
1.44 lbs
Product Questions & Answers 2

Product Questions & Answers

Will this thing hold up on my dump truck for hydraulic fluid transfer?
Question by: Wade G on Jul 9, 2025, 8:29 PM
It's designed for hydraulic fluid transfer, along with use on agricultural and construction equipment, including in-plant manufacturing, dump trucks, snow plows, and maintenance vehicles, so it should be a good fit.
Answer by: Customer Support on Jul 11, 2025, 6:19 AM
got a dump truck that needs a new quick disconnect on the hydraulic line, this a female half only or does it come with both ends?
Question by: Travis J on Apr 26, 2025, 10:59 AM
Just the female half (socket) is included with this one. It's a -16 coupling with a 1-11-1/2 NPT female pipe thread, so you'd need to source the male half separately if you don't already have one in your system. The PUSH-PULL ball latch design on this side handles the connection and disconnection, and the self-sealing poppet valve closes off the line when it's disconnected to keep fluid loss to a minimum.
Answer by: Customer Support on Apr 28, 2025, 6:49 AM

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Buy Now
5601-4-4S -04 1/4-18 Buna-N 1.81 1.08
5601-6-6S -06 3/8-18 Buna-N 2.09 1.27
5601-8-10S -10 1/2-14 Buna-N 2.76 1.52
5601-12-10S -10 3/4-14 Buna-N 2.91 1.52
5601-12-12S -12 3/4-14 Buna-N 3.25 1.84
5601-16-16S -16 1-11-1/2 Buna-N 4.09 2.15
5601-2-4S -04 1/8-27 Buna-N 1.81 1.08
