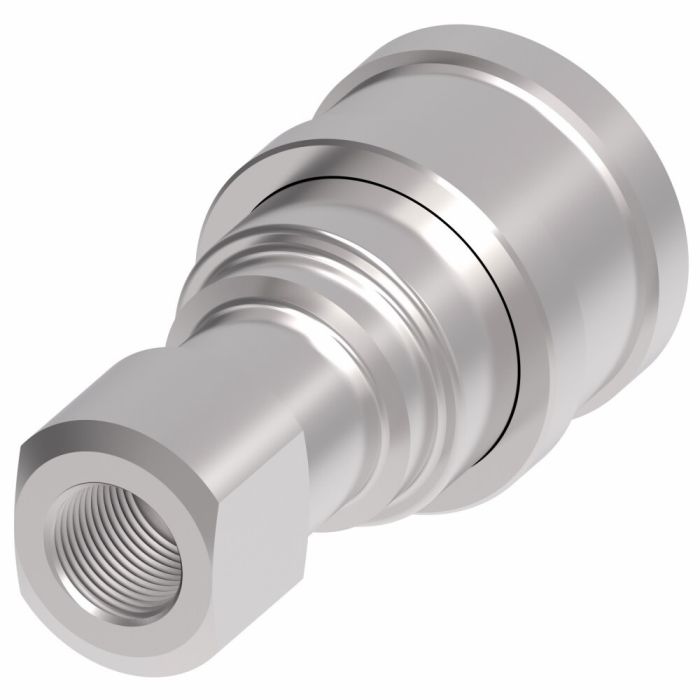

5600 Series Industrial Interchange Quick Disconnect, Female Half, -12 Coupling, 3/4-14 Female Pipe

A 3.25	Air Inclusion Max 10.00 Cubic_centimeter	Application Hydraulic fluid transfer, Agricultural equipment, Construction equipment, In-plant manufacturing, Dump, snow plow and maintainance vehicles	B 1.84	Coupling Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13555	End Size 1 0.75	End Size 2 0.75	End Type 1 Push to Connect	End Type 2 NPT	Fluid Loss 8.20 Cubic_centimeter	Minimum Working Temperature -40	Rated Flow 28	Rated Flow 28	Seal Material Buna-N	Supplier Part Number 5601-12-12S	Thread 1 3/4-14	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1BS94, Alternate Part Number MI-00329959, Alternate Part Number MINO-00015F70098	Product Weight 1.01 lbs

Product Questions & Answers 1

Product Questions & Answers

does this thing work with standard NPT fittings or do I need something special on the pipe end?

Question by: Tony H on Apr 7, 2025, 11:34 AM

The pipe end on this coupling is 3/4-14 female NPT, so it threads onto standard 3/4-14 male NPT fittings without any adapters. The connect side uses a push-to-connect ball latch, so that end just needs a compatible male half from the same 5600 Series or another ISO 7241/1 Series A plug. As long as your pipe side is 3/4-14 NPT male, you're good to go.

Answer by: Customer Support on Apr 8, 2025, 8:33 PM

Similar Products

Model Number	Coupling Size	Thread 1	Seal Material	A	B
5601-4-4S	-04	1/4-18	Buna-N	1.81	1.08
5601-6-6S	-06	3/8-18	Buna-N	2.09	1.27
5601-8-10S	-10	1/2-14	Buna-N	2.76	1.52
5601-12-10S	-10	3/4-14	Buna-N	2.91	1.52
5601-12-12S	-12	3/4-14	Buna-N	3.25	1.84
5601-16-16S	-16	1-11-1/2	Buna-N	4.09	2.15
5601-2-4S	-04	1/8-27	Buna-N	1.81	1.08
